micro-gloss Glossmeter

Single angle gloss meter

micro-gloss 60°
Gloss meter for general purpose – semi gloss surfaces

  • Single angle 60°, especially for semi gloss surfaces
  • For any material: paint, plastic or even metals
  • Measuring area 9 x 15 mm
Technical parameters
Download Documents
CategorySpecification
Geometry60°
Measurement AreaLarge area
ApplicationSemi-gloss
Measuring Area

9 × 15 mm; 0.35 × 0.6 in

Gloss Measurement
Measuring Range0 – 1000 GU
Repeatability0 – 100 GU: ± 0.2 GU ;100 – 2000 GU: ± 0.2%
Reproducibility0 – 100 GU: ± 0.5 GU; 100 – 2000 GU: ± 0.5%
Spectral SensitivityCIE standard observer for illuminant CIE-C
General
Measuring Time0.5 seconds / geometry
Memory999 readings with date and time
InterfaceUSB
LanguagesEnglish, French, German, Italian, Spanish
Power SupplyOne 1.5V AA Alkaline Battery or via USB-port
Battery Capacity4,000 readings
Weight0.4 kg, 0.9 lb
Operating Temperature15 – 40 °C; 60 – 104 °F
Relative HumidityUp to 85%, non-condensing
Dimensions (L × W × H)15.5 × 4.8 × 7.3 cm; 6.1 × 1.9 × 2.9 in

Technical-Data-Sheet_micro-gloss

Three angle gloss meter

Article No. 4563

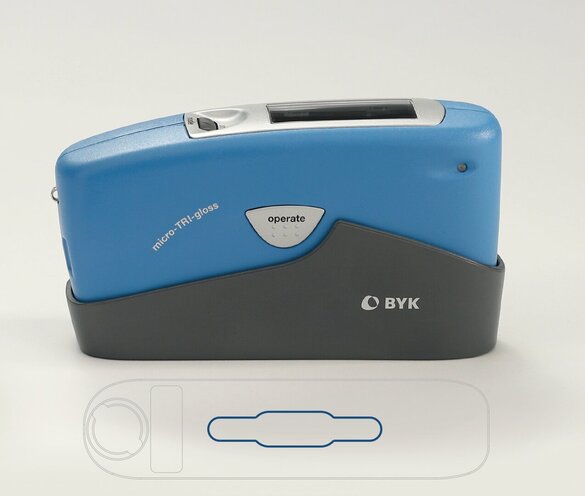

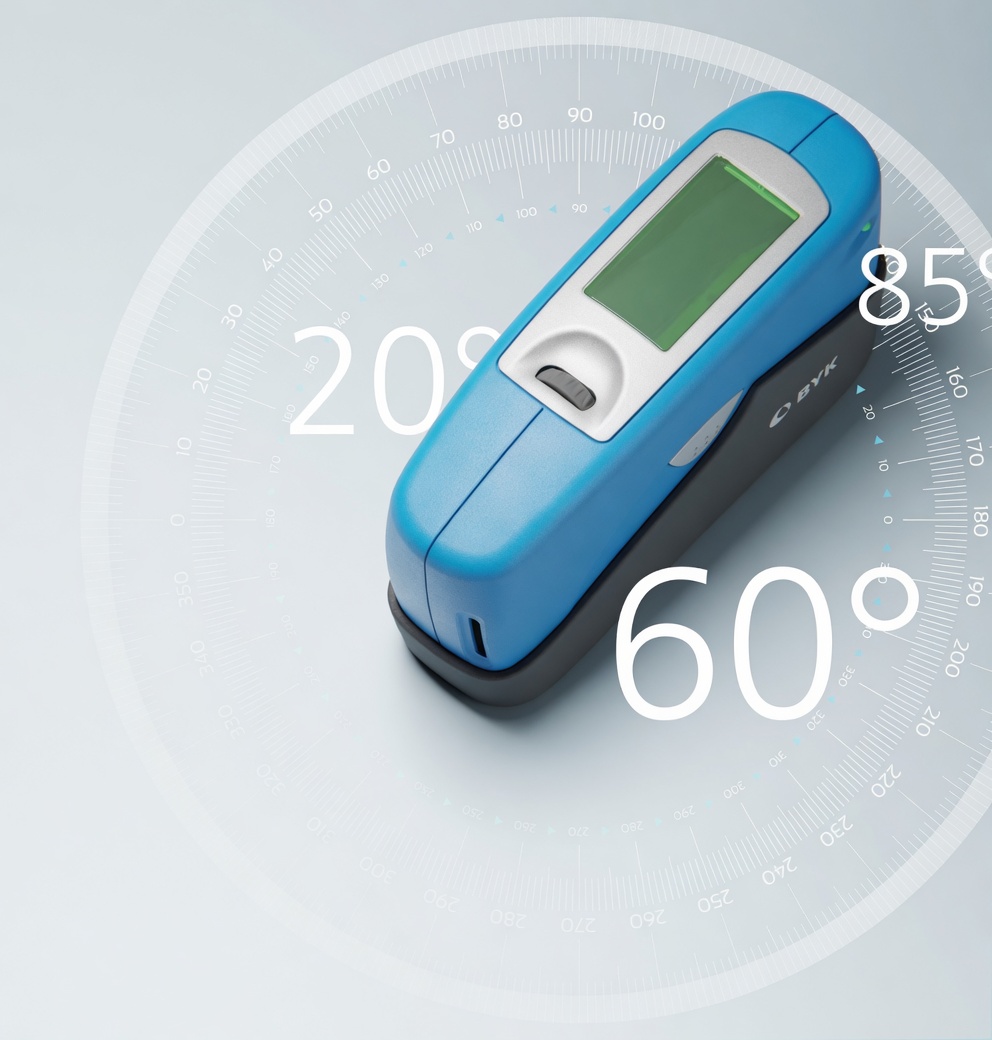

micro-TRI-gloss
Universal gloss meter for high – semi – low gloss surfaces

  • Universal application from high to low gloss
  • 20, 60 and 85° angle in one instrument
Technical parameters
Download Documents
ModelDG60 SEDG60 ProDG60 Max
CalibrationAutomatic
Measure Angle60°
ParameterGloss(GU)
Aperture23*7mm
Measure range0-200GU0-1200GU0-2000GU
Stability1GU0-100:0.1GU;＞100:1GU
Repeatability*1±0.1 / ±0.1%0.1/0.1%
BatteryRechargeable, 5000 times
continuous tests		Rechargeable, 15000 times
continuous tests		Rechargeable, 30000 times
continuous tests
*Continuously measure the standard deviation for 30 times. When the measured value is less than 100gu,
use the absolute value to evaluate; When the measured value is greater than 100gu,
it is evaluated by percentage

Technical-Data-Sheet_micro-TRI-gloss
