Visual comparison to liquid standards for Gardner color
Gardner Liquid Standard L 115
Color comparator with backlight & 18 liquid standards
- Steel holding rack with 18 tubes of colored fluids in numbered positions
- Fluorescent lamp illumination
- For use with 115 V
Technical Parameters
Download Document
| Category | Specification |
| Illumination | Yes |
| Illumination Power Supply | Yes – 115 V, 60 Hz |
| Color Measurement | |
| Type | Rack including standards |
| Light Source | Fluorescent Lamp |
| General | |
| Power Supply | 115 V, 60 Hz |
| Weight | 6.4 kg / 14 lb |
| Dimensions (L × W × H) | 66 × 15 × 15 cm / 26 × 6 × 6 in |
Objective color QC of transparent liquids

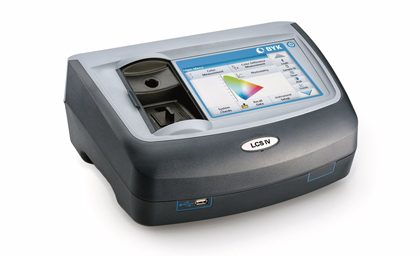

LCS IV
Objective color QC and analysis of transparent liquids
- Spectrophotometer – Highly accurate and reliable results are guaranteed by the dual beam principle
- Determination of visual color numbers and common color scales (e.g. CIELAB, CIELCH, Hunter Lab)
Technical Parameters
Download Document
| Category | Specification |
| Data Output | Spectral Data and Liquid Color Indices |
| Color Measurement | |
| Type | Single-beam photometer with reference beam path |
| Spectral Range (Color) | 380–720 nm, 10 nm resolution |
| Spectral Range (Photometric) | 320–1100 nm, 1 nm resolution |
| Color Scales | CIELab, CIELCh, Hunter Lab |
| Illuminants | A, C, D65 |
| Observer Angles | 2°, 10° |
| Spectral Modes | % Transmission, % Absorbance, Concentration |
| Light Source | Tungsten Halogen Lamp |
| General | |
| Memory | 3000 color measurements, 100 color references, 1000 photometric readings |
| Interface | 2× USB-A, 2× USB-B, 1× Ethernet (LAN) |
| Export Format | *.csv file to USB memory stick or Ethernet |
| Power Supply | 100–240 V / 47–63 Hz |
| Weight | 4.2 kg / 9.3 lb |
| Operating Temperature | 10–40 °C / 50–104 °F |
| Relative Humidity | Up to 80% at 35 °C (95 °F), non-condensing |
| Dimensions (L × W × H) | 25.5 × 35 × 15.1 cm / 10 × 13.7 × 5.9 in |
