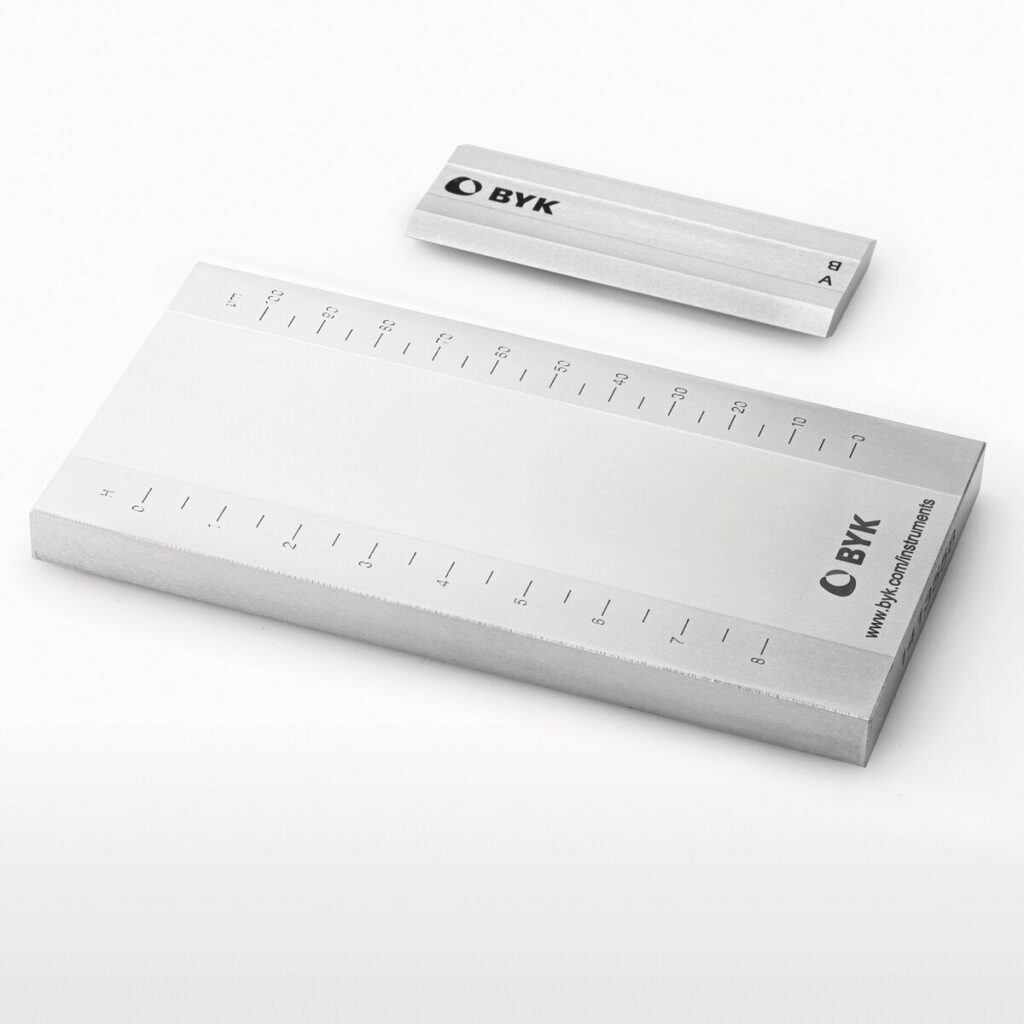

Grind Gages – µm / Hegman, one path
Technical Parameters
Download Documents
| Category | Specification |
| Scales | µm, Hegman |
| No. of Paths | 1 |
| Range (µm) | 0 – 25 µm, 0 – 50 µm, 0 – 100 µm |
| Range (Hegman) | 8 – 6 Hegman, 8 – 4 Hegman, 0 – 8 Hegman |
| General | |
| Weight | 3.6 kg / 8lb |
| Dimensions (L × W × H) | 16.9 × 4.2 × 1.3 cm |
