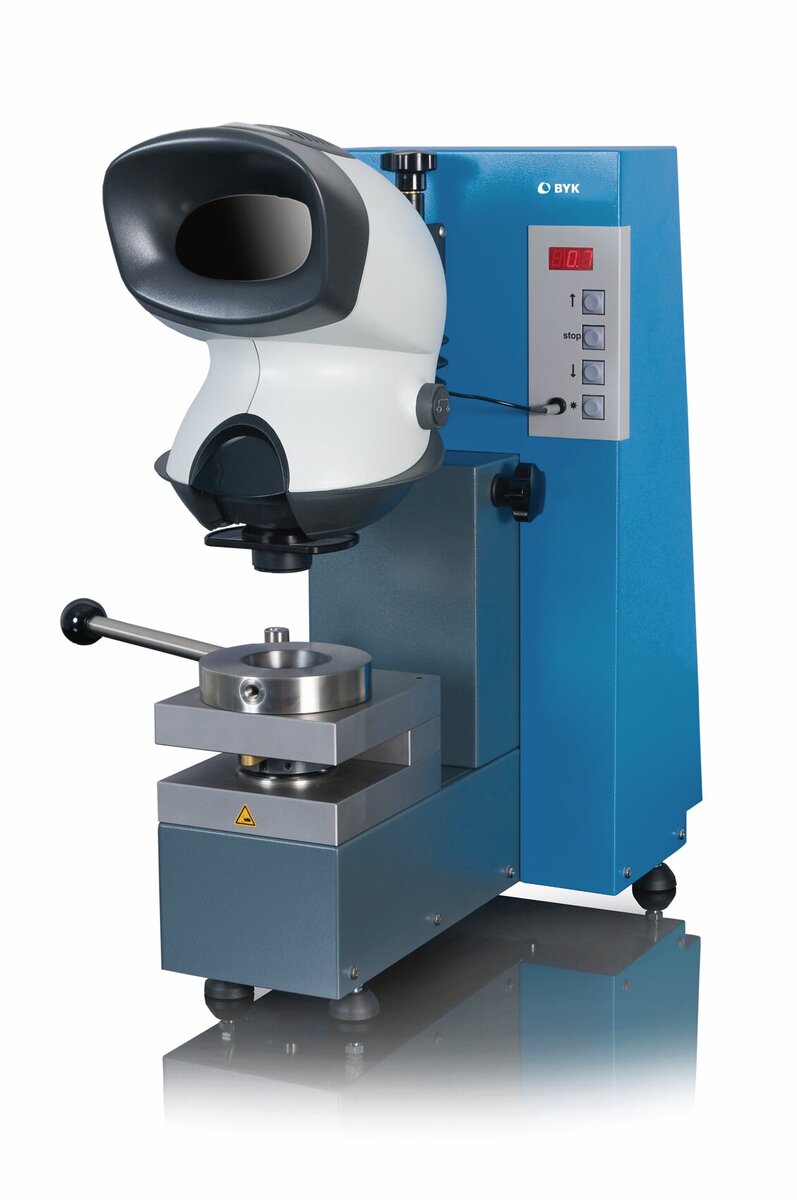

Automatic Cupping Tester
Automatic Cupping Tester
Gradual deformation by indentation – automatic operation
- Automatic version
Technical Parameters
Download Documents
| Category | Specification |
| Spherical Punch Diameter | 20 mm / 0.8 in |
| Sheet Holder Diameter | 33 mm / 1.3 in |
| Die Diameter | 27 mm / 1.06 in |
| General | |
| Power Supply | 115/230 V, 50/60 Hz |
| Current | Max. 4 A (at 230 V) |
| Weight | 65 kg / 143 lb |
| Dimensions (L × W × H) | 60 × 28 × 65 cm / 24 × 11 × 26 in |

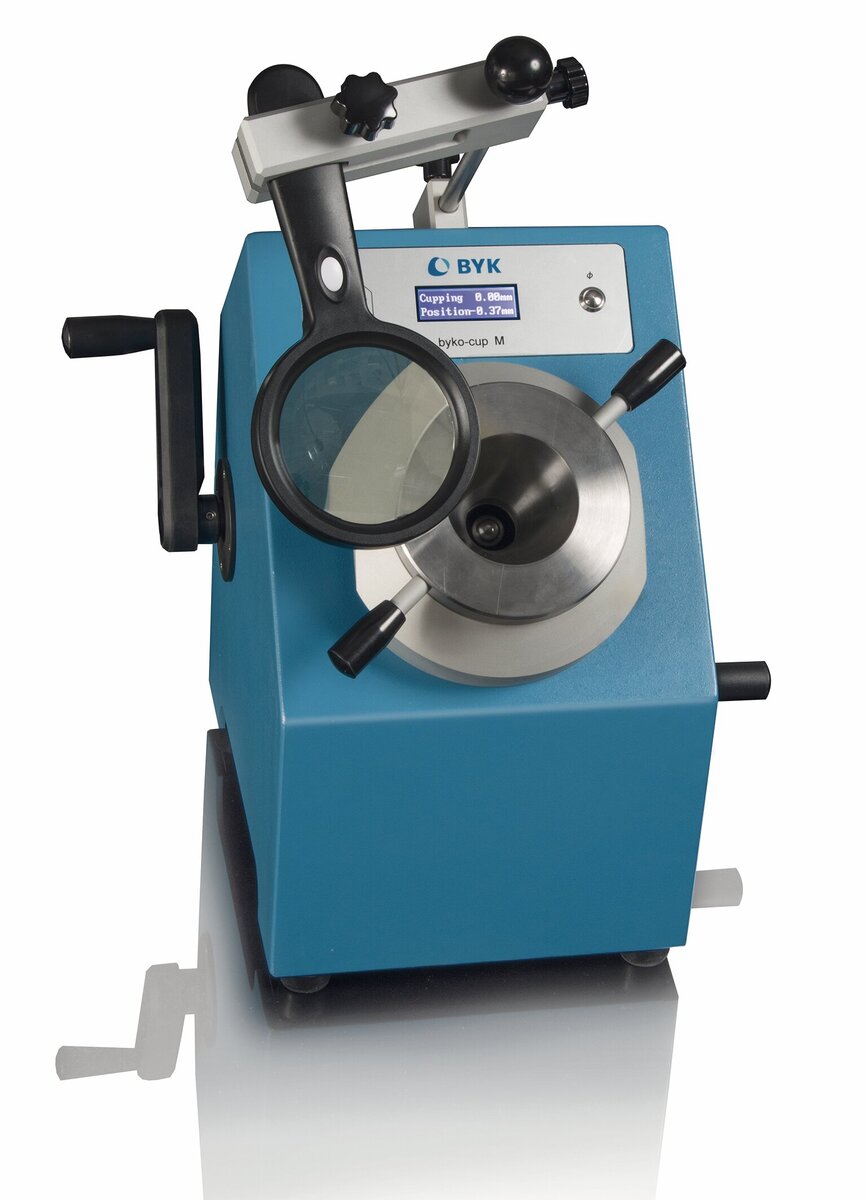

Manual Cupping Tester
byko-cup M
Gradual deformation by indentation – manual operation
- Manual version
Technical Parameters
Download Documents
| Category | Specification |
| Spherical Punch Diameter | 20 mm / 0.8 in |
| Full Travel | 0–20 mm / 0–0.79 in |
| Accuracy | ±0.05 mm / ±0.002 in (full range) |
| Calibrated Range | -0.5–20 mm / -0.02–0.79 in |
| Display | LCD 4-digit |
| Gearing | 1 revolution of handle moves punch 0.2 mm under load |
| Power Supply | Plug adapter, 5 VDC, 1 A |
| Weight | 27.2 kg / 60 lb |
| Operating Temperature | 15–35 °C / 59–95 °F |
| Dimensions (L × W × H) | 40.5 × 28 × 50 cm / 15.9 × 11 × 19.7 in |
