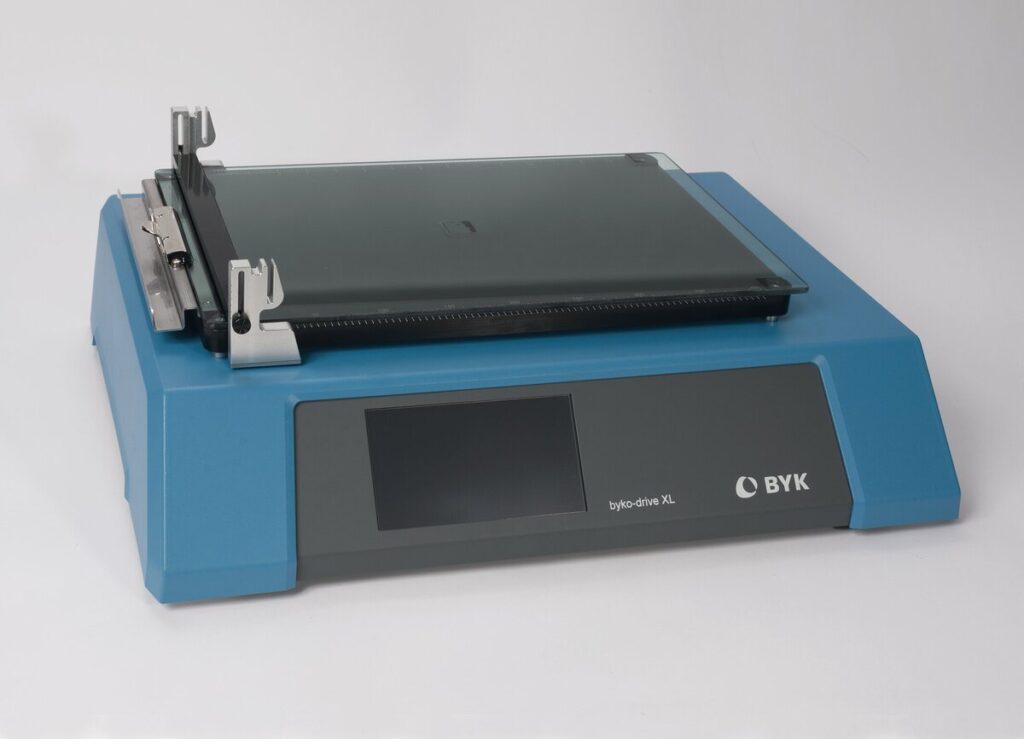

Large Automatic Film Applicator
Technical Parameters
Download Documents
| Category | Specification |
| Platform | With glass plate or vacuum plate |
| Traverse Speeds | 5–500 mm/s / 0.2–19.6 in/s |
| Traverse Speed Accuracy | ±1% of set speed |
| Wire Bar Diameter | Max. 15 mm / Max. 0.6 in |
| Wire Bar Length Maximum | 60 cm / 24 in |
| Stroke Length | Max. 40 cm / Max. 15.7 in |
| Test Panel Size Maximum | 28.5 × 43.8 cm / 11.2 × 17.2 in |
| Gap Push-Bar / Plate | 2–39 mm / 0.08–1.54 in |
| Push-Bar Weight | 0.5 kg (up to 1.5 kg with optional weights) |
| Set-Up Memory | 6 |
| Maximum Vacuum | 0.67 bar / 20 inHg |
| General | |
| Power Supply | 100–240 V, 50/60 Hz |
| Weight | 17 kg / 37.4 lb |
| Dimensions (L × W × H) | 61 × 44.5 × 20.4 cm / 24 × 17.5 × 8 in |
Small Automatic Film Applicator
Technical Parameters
Download Documents
| Category | Specification |
| Platform | With glass plate or vacuum plate |
| Traverse Speeds | 2–200 mm/s / 0.1–7.9 in/s |
| Traverse Speed Accuracy | ±1% |
| Wire Bar Diameter | Max. 15 mm / Max. 0.6 in |
| Wire Bar Length Maximum | 60 cm / 24 in |
| Stroke Length | 2.5–23.5 cm / 1–9.25 in |
| Test Panel Size Maximum | 22.9 × 30.5 cm / 9 × 12 in |
| Gap Push-Bar / Plate | 2–39 mm / 0.08–1.54 in |
| General | |
| Power Supply | 100–240 V, 50/60 Hz |
| Weight | 13.2 kg / 29 lb |
| Dimensions (L × W × H) | 47 × 35.6 × 20.3 cm / 18.5 × 14 × 8 in |
