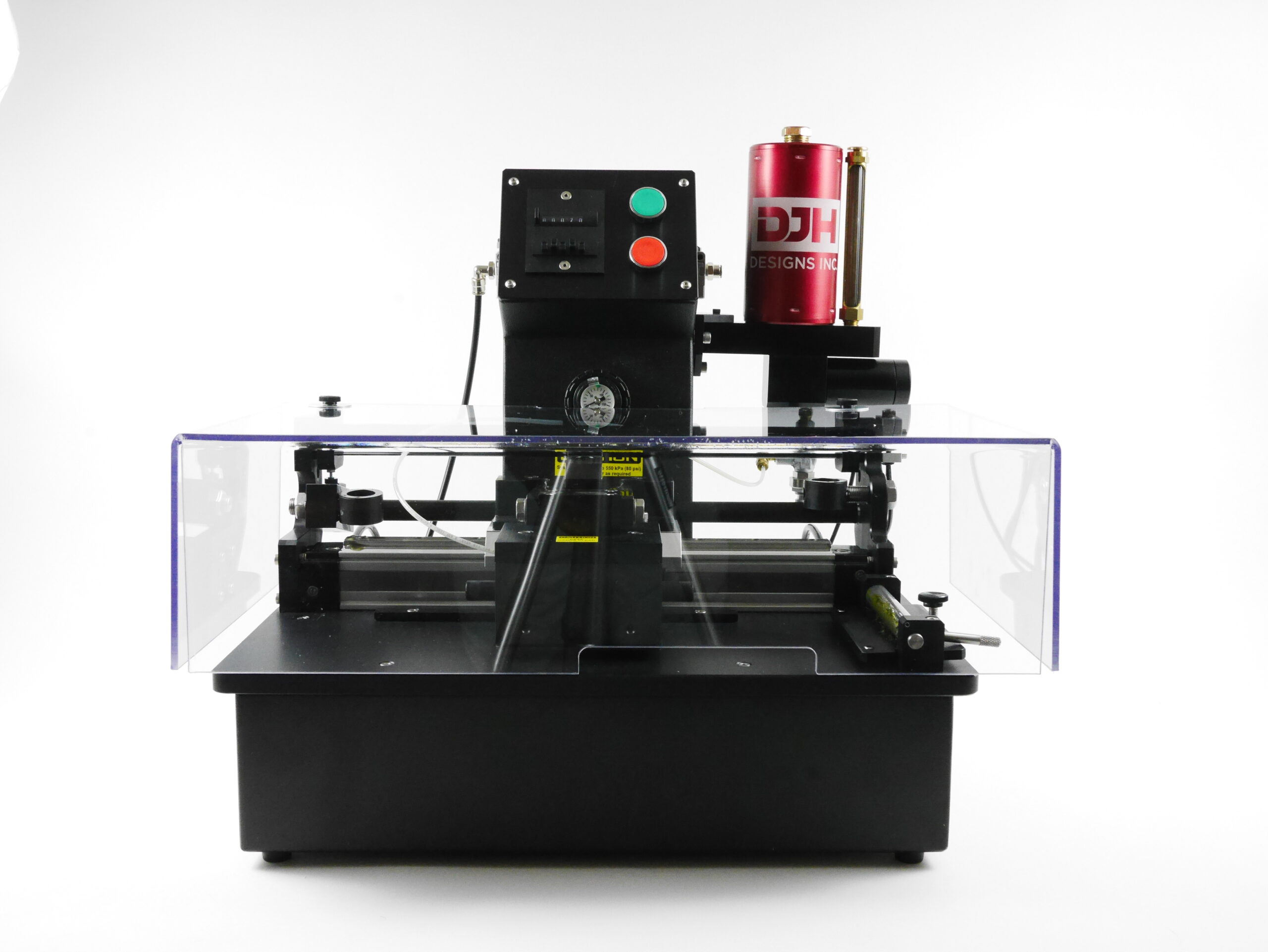

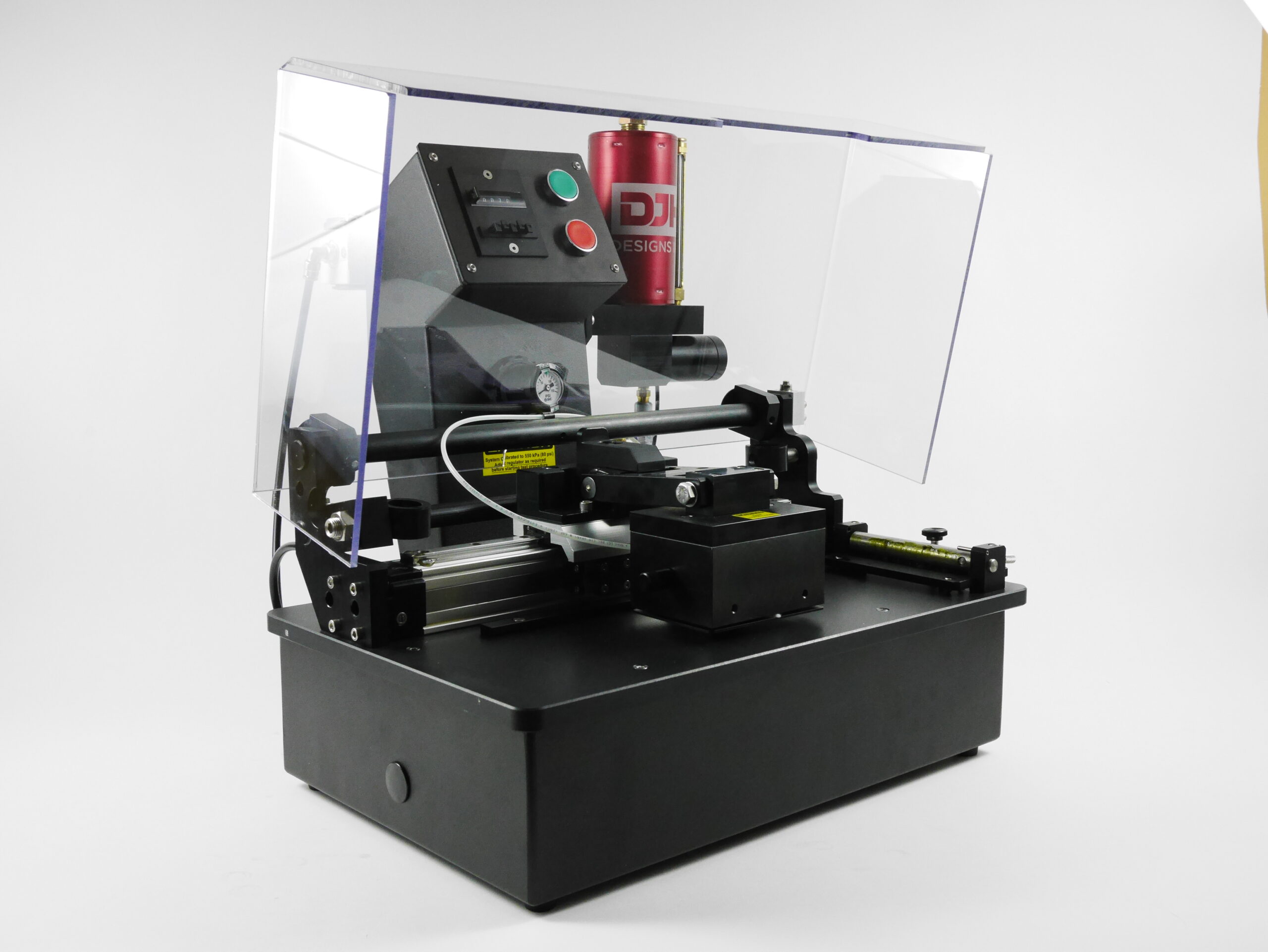

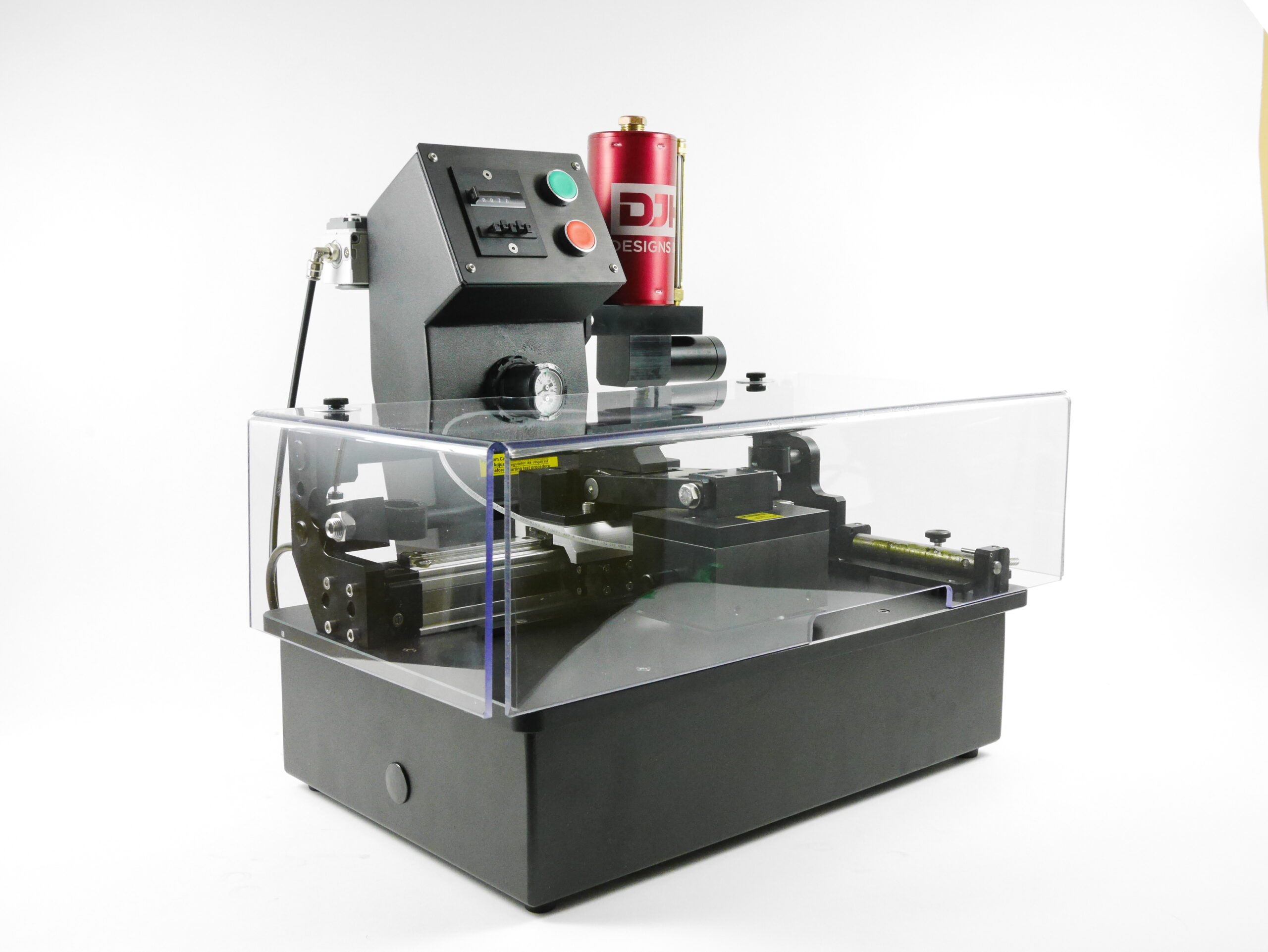

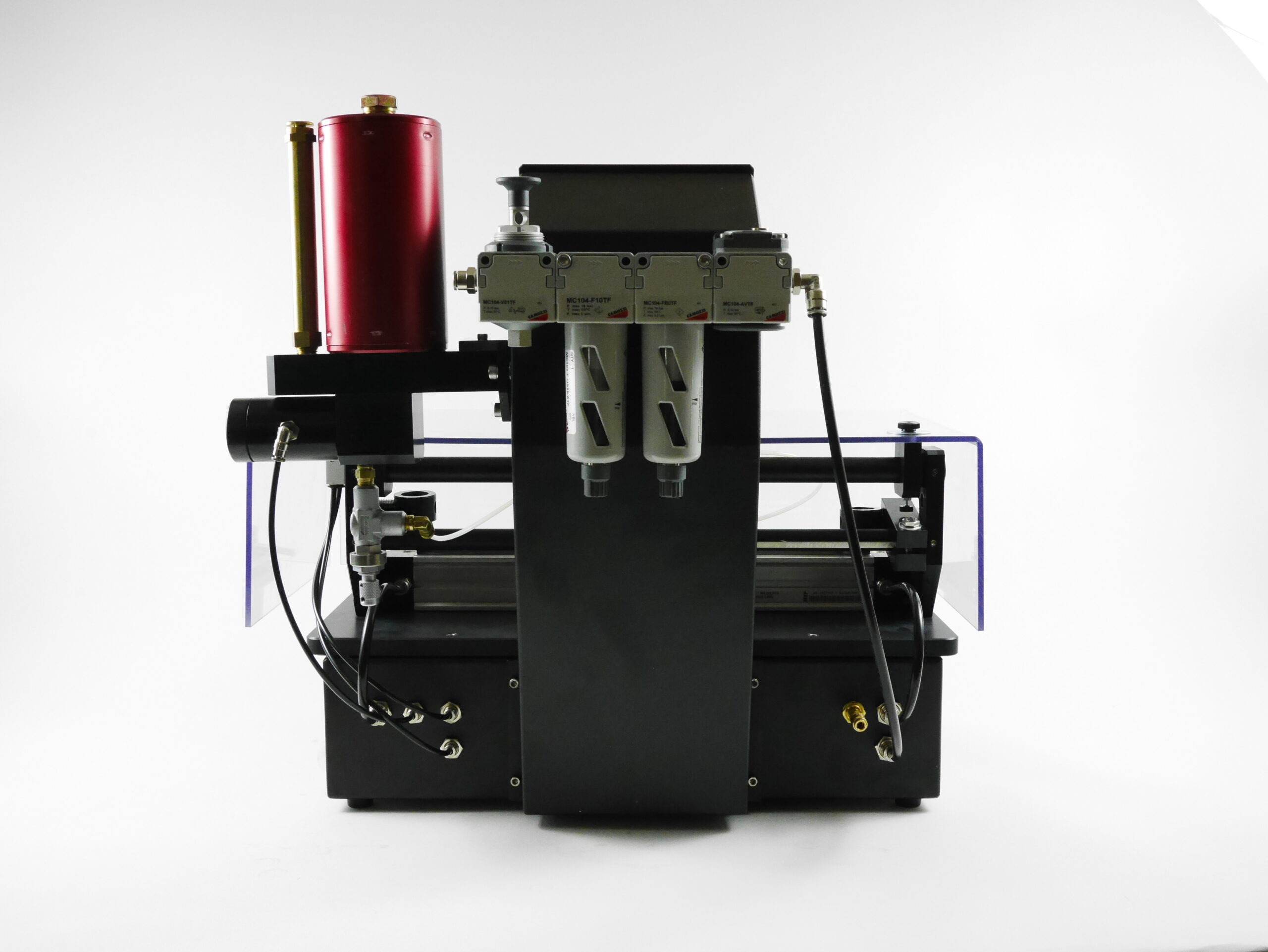

The MEK Rub Test Machine is designed to eliminate variations in test results caused by different operators, ensuring consistent and repeatable performance.
This semi-automated system allows quality control and production teams to reproduce laboratory-level results directly on the production line. With simple front-panel controls, users can set the number of strokes, start the cycle, and let the machine run the test automatically. This improves efficiency, reduces operator workload, and limits exposure to testing solvents.
Once the cycle is complete, the machine stops automatically and returns to its starting position, indicating the end of the test. The quick-change pad system also makes preparation for the next test fast and easy.
In France, InnovLab Solution supplies the MEK Rub Test Machine, offering local expertise, technical support, and reliable service for laboratory and industrial quality control needs.
Optional Accessories
Dual Reservoir – Allows use of two different solvents without interruption.

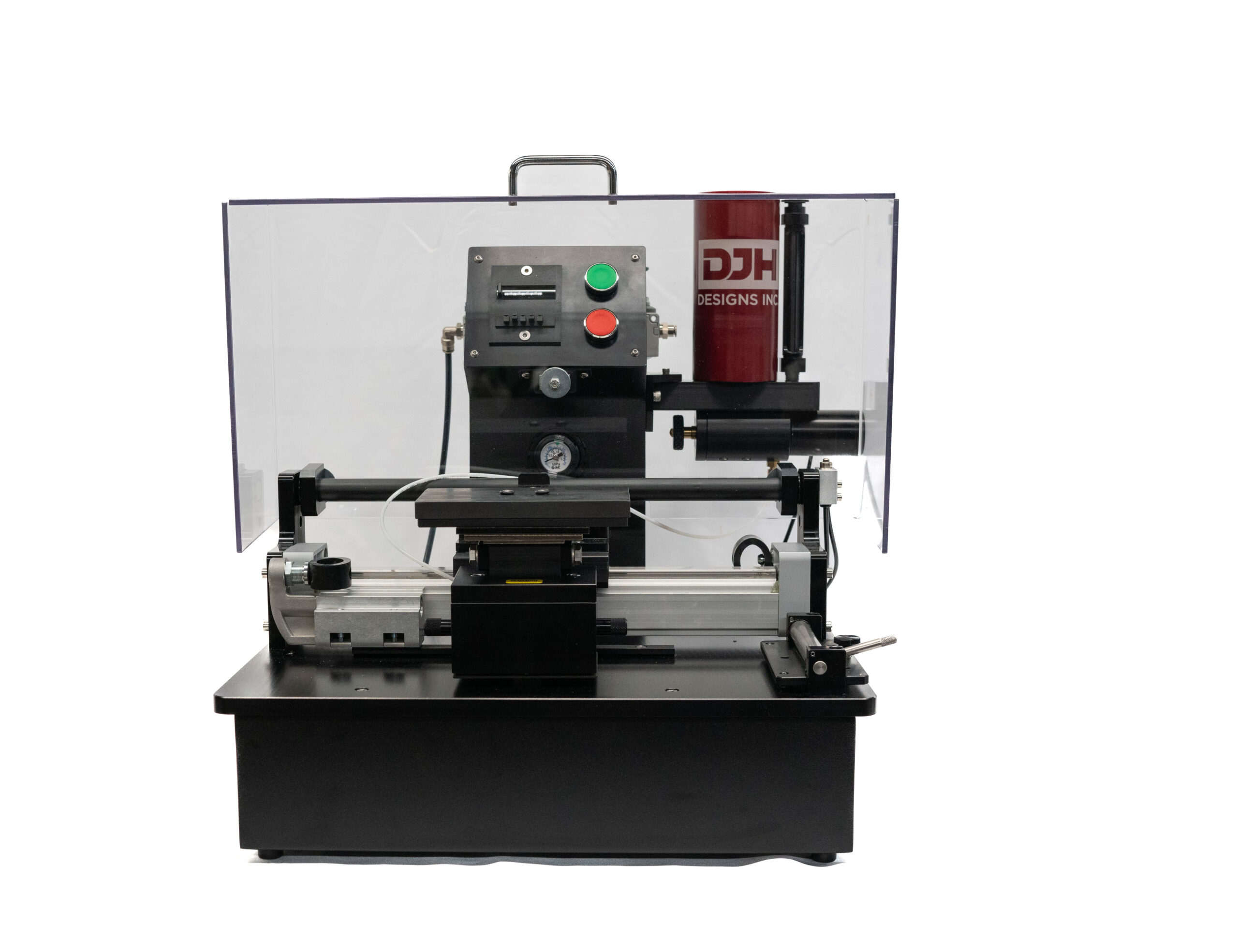

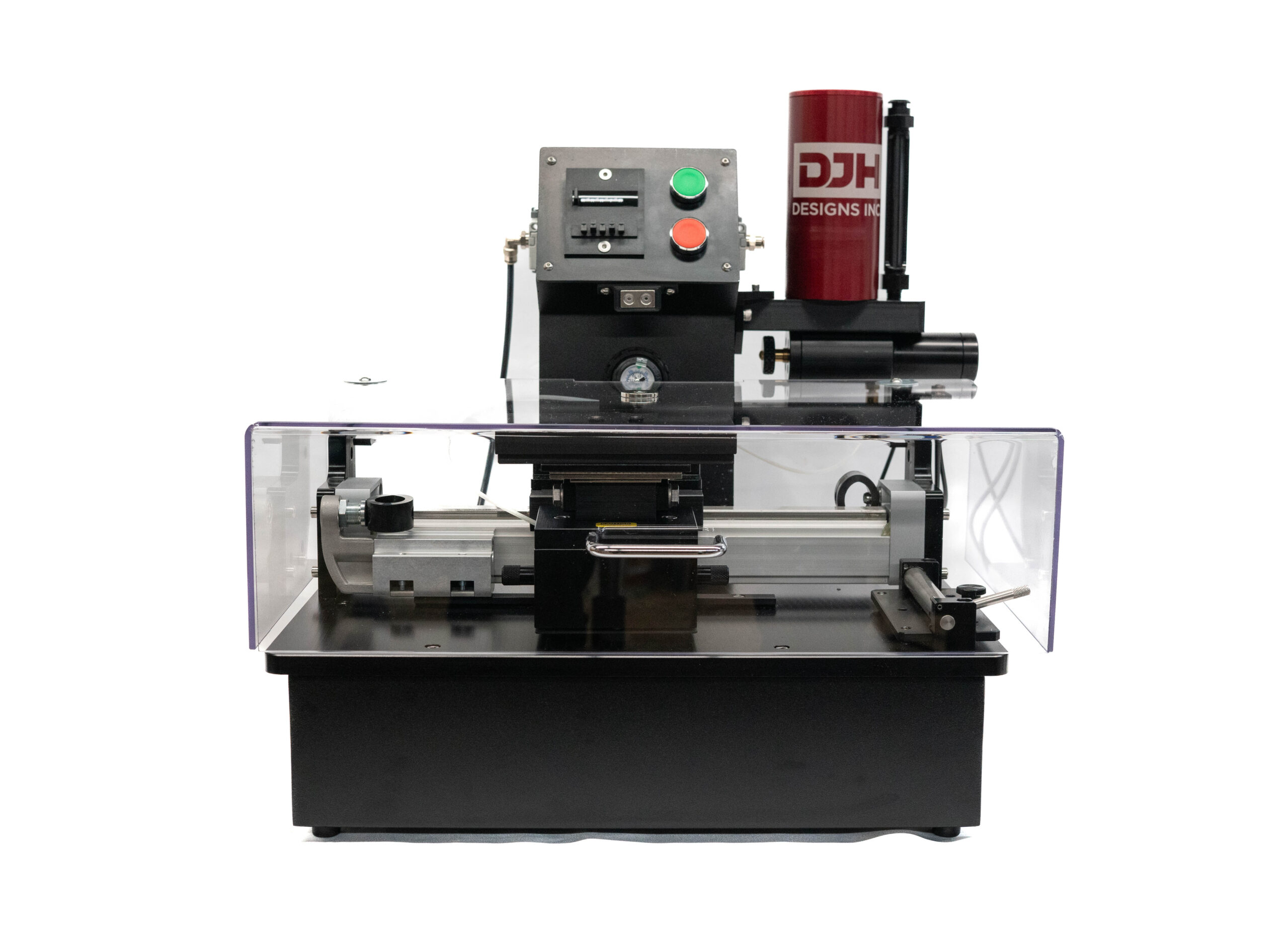

Variable Stroke Kit – Supports non-standard panel sizes (85–305 mm).
Variable Weight Head – Adjustable from 1000 g to 3000 g for ASTM and EU standards.
• Easy to setup, simple to operate
• Repeatable consistent results, constant pressure dead weight rubbing block
• Front panel mounted controls
• Minimal solvent usage, adjustable solvent flow metering valve
• 425cc solvent reservoir with auto shutoff control
• Quick Change solvent pad system
• Controlled Stroke count, counter can be set from 1 to 9999 strokes
• CE Certified
• Intrinsically safe – no electrics, all pneumatic operation
• Minimized operator contact with and exposure to Solvent
• ASTM Designation D7835
