Advanced Laboratory Testing Equipment for
Coil Coating Industries
Precision instruments for gloss and appearance evaluation, color measurement, film thickness inspection, physical properties testing, and corrosion and weathering performance — supporting pre-painted steel and aluminum quality from production through final inspection.

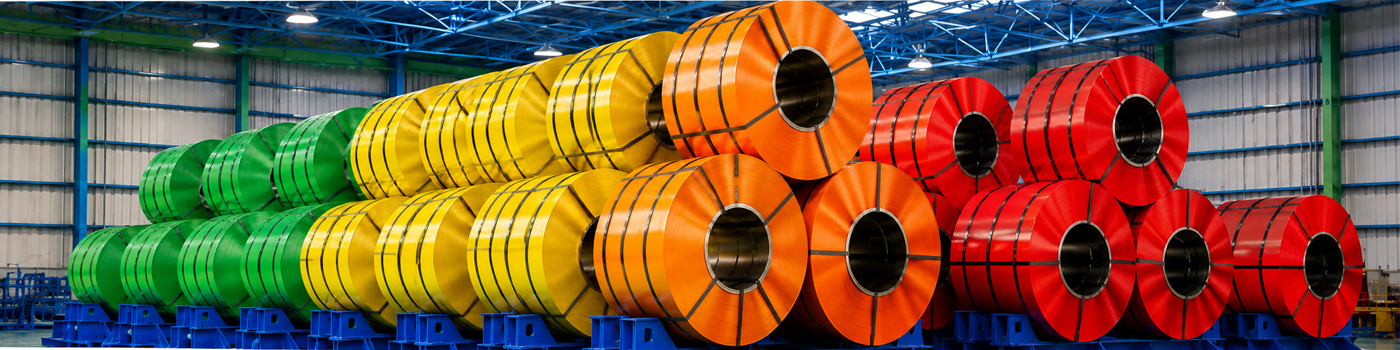

The coil coating industry is one of the most advanced and efficient coating processes used in modern manufacturing. Coil coating involves the continuous application of organic coatings onto steel and aluminum coils before fabrication into finished products. This highly automated process ensures exceptional productivity, coating consistency, and product quality while serving a wide range of industries including construction, architecture, transportation, appliances, HVAC systems, furniture, and industrial equipment.
Pre-painted steel and aluminum products are expected to maintain outstanding appearance, color consistency, gloss uniformity, corrosion resistance, durability, and weatherability throughout their service life. As customer expectations continue to increase, manufacturers require advanced quality control systems capable of monitoring every aspect of coating performance from production through final inspection.
InnovLab Solutions provides comprehensive coil coating testing solutions covering appearance measurement, color control, metallic effect evaluation, gloss measurement, film thickness inspection, physical property testing, corrosion assessment, weathering evaluation, and digital quality management.
Gloss & Appearance Measurement for Coil Coatings
Objective evaluation of surface uniformity and gloss for pre-painted metal products
Surface appearance is one of the most critical quality attributes in pre-painted metal products. Customers expect smooth, uniform surfaces free from orange peel, waviness, haze, texture variations, and other appearance defects.
Even minor visual inconsistencies can become highly visible after fabrication and installation, especially in architectural applications where large coated surfaces are exposed to natural lighting conditions.
Advanced appearance measurement instruments allow manufacturers to objectively quantify surface characteristics that were previously evaluated through subjective visual inspection.

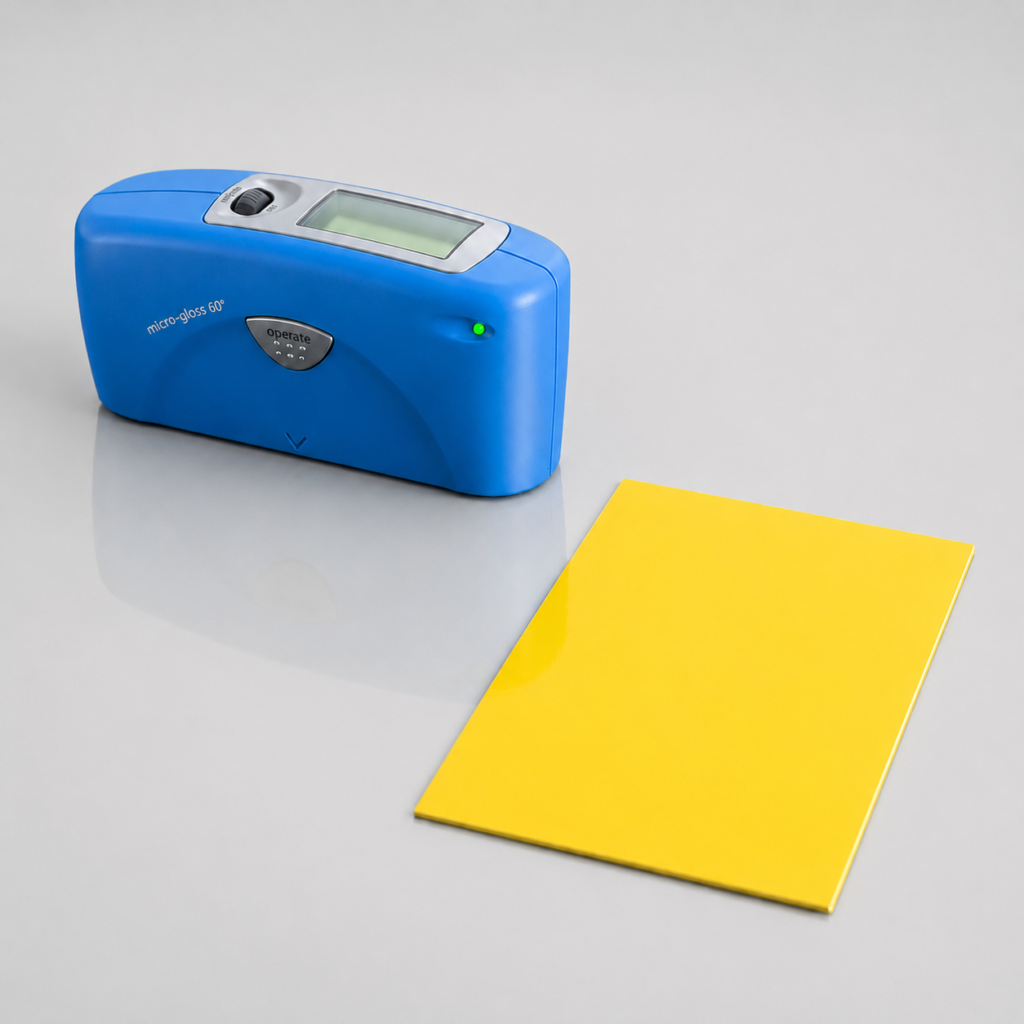

Gloss is a key appearance parameter influencing customer perception and product quality. Coil coating manufacturers must maintain strict gloss tolerances to ensure visual consistency throughout production. Advanced gloss measurement instruments provide fast and accurate gloss evaluation both in the laboratory and on production lines.
COLOR MEASUREMENT AND COLOR CONSISTENCY CONTROL
Spectrophotometers for batch-to-batch color consistency across glazes, pigments, and firing conditions
Color consistency is essential throughout the coil coating production process. Manufacturers must ensure that every production batch meets customer specifications while maintaining consistency across multiple coating lines, production facilities, and geographic regions.

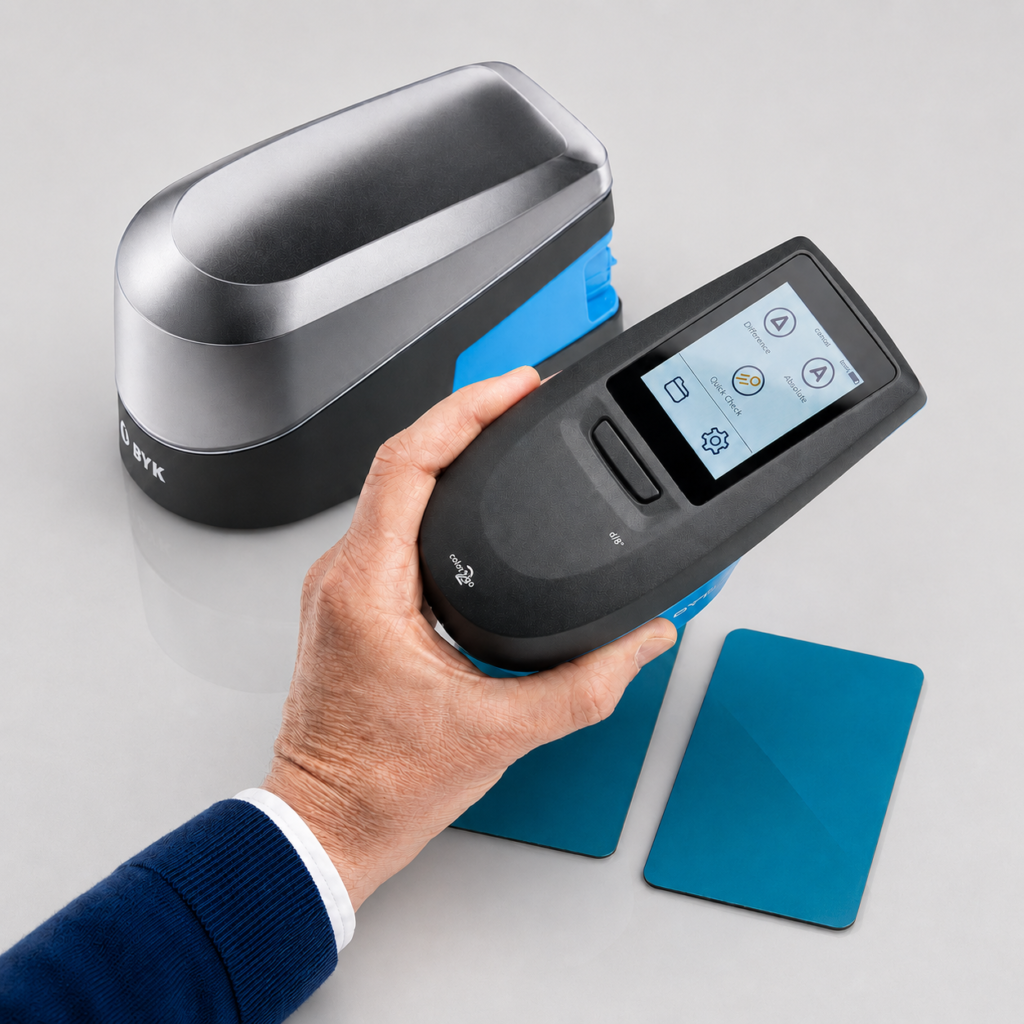

Advanced spectrophotometers and color measurement systems provide objective color data for process control, supplier communication, and quality assurance.
The use of metallic, pearlescent, and special-effect pigments continues to grow in modern architectural and decorative coil coatings. These finishes provide unique visual effects but also introduce additional quality control challenges related to sparkle, graininess, pigment orientation, mottling, and appearance uniformity.
Multi-angle color measurement systems enable manufacturers to objectively evaluate these complex visual characteristics.
Film Thickness Measurement
Dry, wet, and non-destructive thickness gauges for primer, topcoat, and multi-layer systems
Coating thickness directly influences corrosion protection, weather resistance, durability, and overall product performance.
Accurate thickness measurement allows manufacturers to optimize coating consumption while ensuring compliance with customer specifications and international standards.
Physical Properties Testing Equipment
Hardness, adhesion, impact, and flexibility testing for forming, bending, and long-term durability
Coil coated products are subjected to forming, bending, stamping, transportation, installation, and long-term environmental exposure. As a result, coatings must exhibit excellent mechanical performance.
Physical testing helps manufacturers evaluate coating durability before products reach the market.

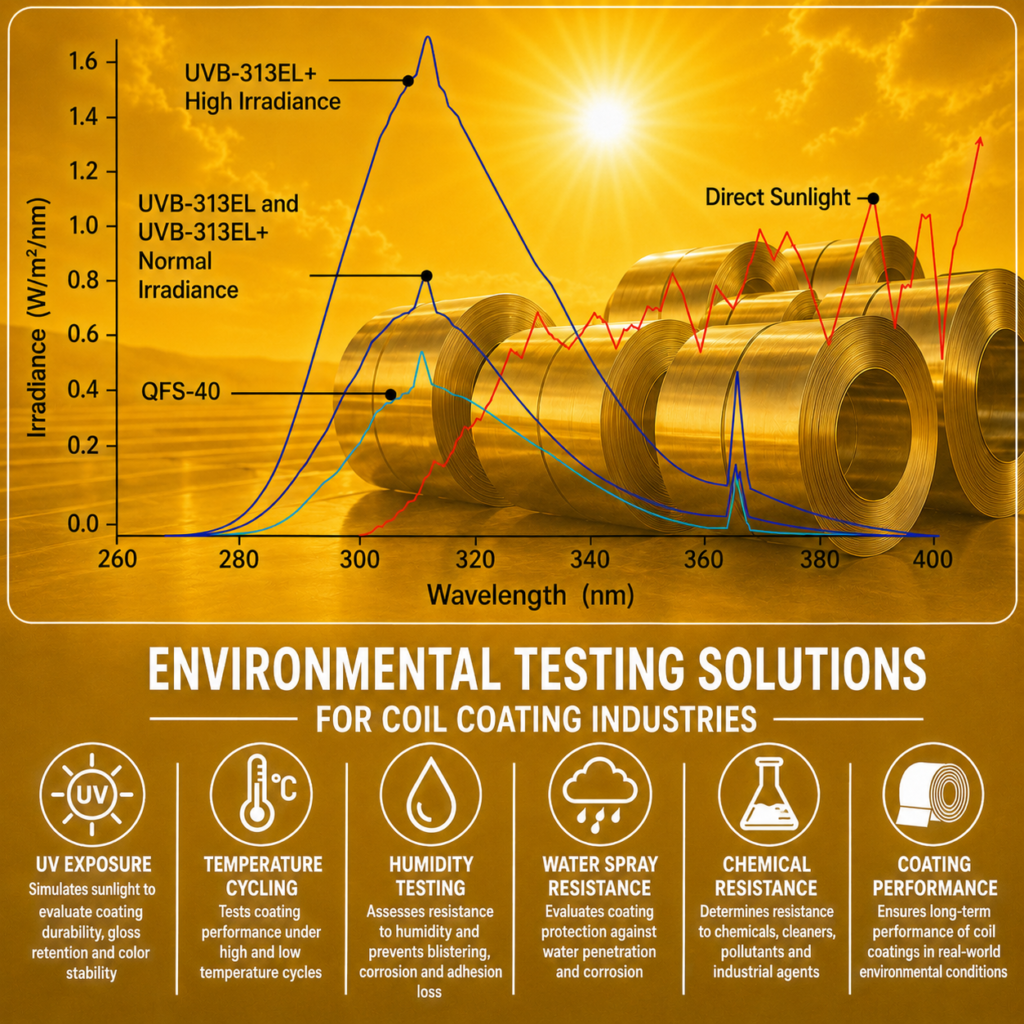

Corrosion and Weathering Testing Equipment
Salt spray · UV · humidity · xenon arc accelerated durability testing
Automotive coatings are continuously exposed to moisture, road salt, UV radiation, temperature fluctuations, and aggressive environmental conditions. Long-term durability is therefore a critical performance requirement.
Advanced corrosion and weathering chambers reproduce real-world automotive environments through controlled cycles of salt spray, humidity, drying, temperature variation, and UV exposure. These accelerated test methods provide a realistic assessment of coating durability and allow manufacturers to evaluate resistance to blistering, rust creep, discoloration, gloss loss, cracking, and other degradation mechanisms that may occur during long-term service. Cyclic corrosion testing is particularly valuable because it more closely simulates actual outdoor conditions than conventional continuous salt spray testing.
Digital Quality Management Solutions
Centralized data analysis · SPC · standardized appearance evaluation across global supply chains
Digital quality management platforms transform measurement data into actionable process intelligence, enabling manufacturers to monitor product quality in real time across production lines, laboratories, and multiple manufacturing sites. Centralized data collection and automated reporting improve transparency, reduce manual data handling, and provide immediate access to critical quality information throughout the organization.
Integrated trend analysis, statistical process control (SPC), and process monitoring tools help identify variations before they become production issues. By connecting quality data from suppliers, production facilities, and quality control laboratories, manufacturers can improve consistency, support continuous improvement initiatives, and ensure compliance with demanding automotive quality standards across the entire supply chain.
Advanced software solutions also facilitate standardized appearance evaluation by consolidating color, gloss, haze, DOI, and other appearance measurements into a single digital environment. Shared specifications, automated pass/fail criteria, and centralized databases help ensure that quality requirements are applied consistently regardless of production location or inspection point.
In addition, digital quality systems support traceability and data-driven decision making by maintaining comprehensive records of measurement results, production batches, and process parameters. This enables faster root-cause analysis, simplifies audits, and provides valuable insights for process optimization, helping manufacturers reduce waste, improve efficiency, and maintain consistent product quality on a global scale.
Need a complete laboratory solution for coil coating production?
InnovLab Solutions provides integrated testing equipment packages covering appearance, color, film thickness, physical properties, and corrosion/weathering performance — from production line monitoring through final quality control.
