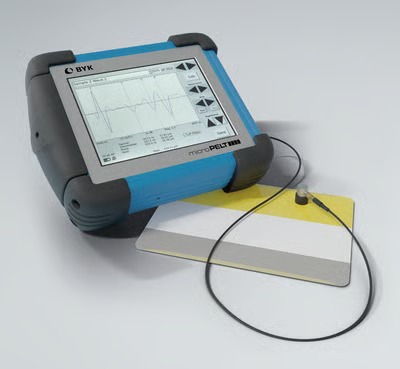

Handheld Multi-Layer Film Thickness Gauge
Technical Parameters
BYK-PELT transducers
Download Document
| Catalog number | 94000 | 94002 | 94004 | 94006 |
| Product name | BYK-µPELT 3 | BYK-µPELT 3H | BYK-µPELT 5 | BYK-µPELT 5+ |
| Measuring range | 5–400 µm | 80–5000 µm | 5–400 µm | 5–5000 µm |
| Measuring range | 0.2–15.7 mil | 3.2–196.9 mil | 0.2–15.7 mil | 0.2–196.9 mil |
| Repeatability and reproducibility | < 10% for solvent and waterborne coatings with typical process variation (Varies by layer) | |||
| Accuracy | ±1.3 microns or 2% of the coating whichever is greater. | |||
| Maximum layers | 3 | 5 | ||
| Operating temperature | 0–40 °C (32–104 °F) | |||
| Dimensions: L × W × H | 17.5 x 15 x 5.5 cm (6.9 x 5.9 x 2.2 in) | |||
| Weight | 1.18 kg (2.6 lb) | |||
| Catalog number | 94026 | 94025 | 94023 | 94024 | 94029 | 94030 | 94028 | 94021 |
| Product name | 50B | 40B | MB | MC (Robotic) | SMB | 20B | M30 | M10 |
| Measuring range | 5–175 µm | 6–200 µm | 10–400 µm | 18–500 µm | 80–750 µm | 300–5000 µm | ||
| Measuring range | 0.20–6.89 mil | 0.24–7.87 mil | 0.04–15.75 mil | 0.39–15.75 mil | 0.71–19.7 mil | 3.15–29.5 mil | 11.8–197 mil | |
| Transducer type | High Frequency | Medium Frequency | Low Frequency | |||||
| Curvature radius – convex | ≥ 50.8 mm | |||||||
| Curvature radius – concave | ≥ 260 mm | ≥ 152.4 mm | ≥ 220 mm | ≥ 260 mm | ≥ 152.4 mm | |||
| Transducer dia. with FlexCap | Ø 14.2 mm | Ø 12.26 mm | Ø 14.2 mm | n/a | Ø 14.2 mm | |||
| Transducer dia. without FlexCap | Ø 11.1 mm | Ø 9.28 mm | Ø 11.1 mm | Ø 6.96 mm | Ø 11.1 mm | |||
