Coil Coating Inspection
DJH Designs · Film Thickness

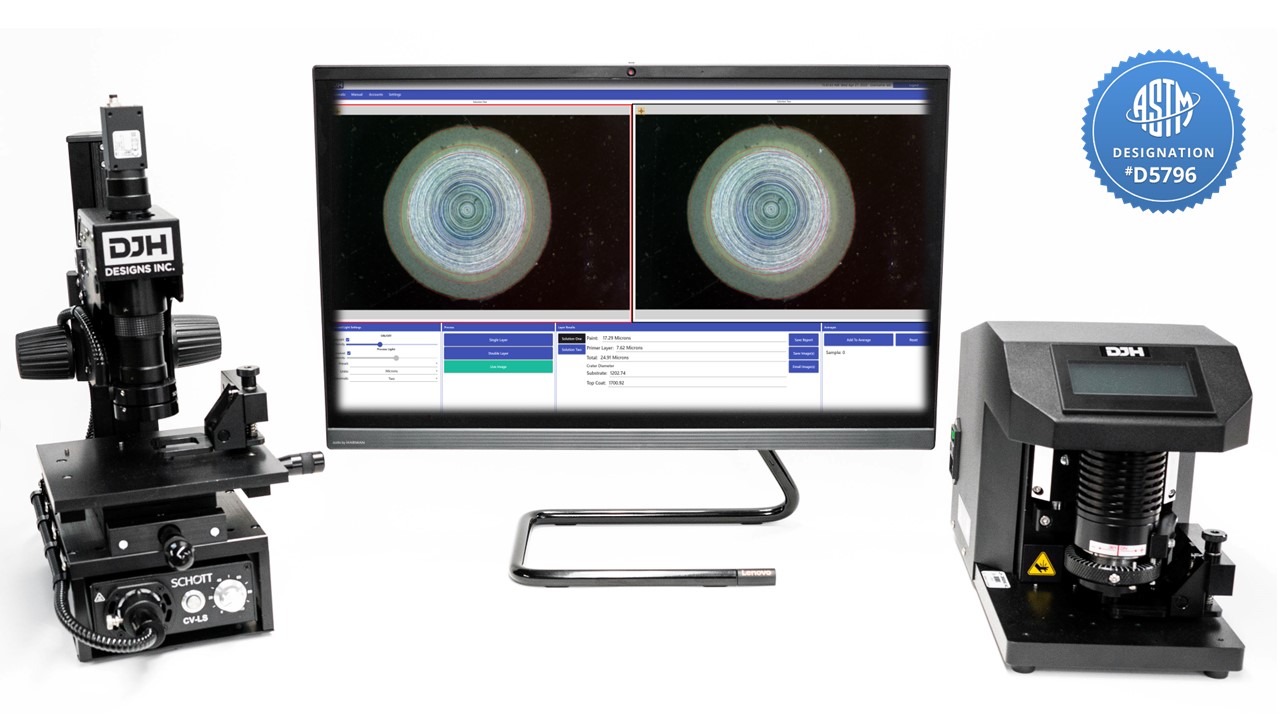

Film Thickness
Measuring System

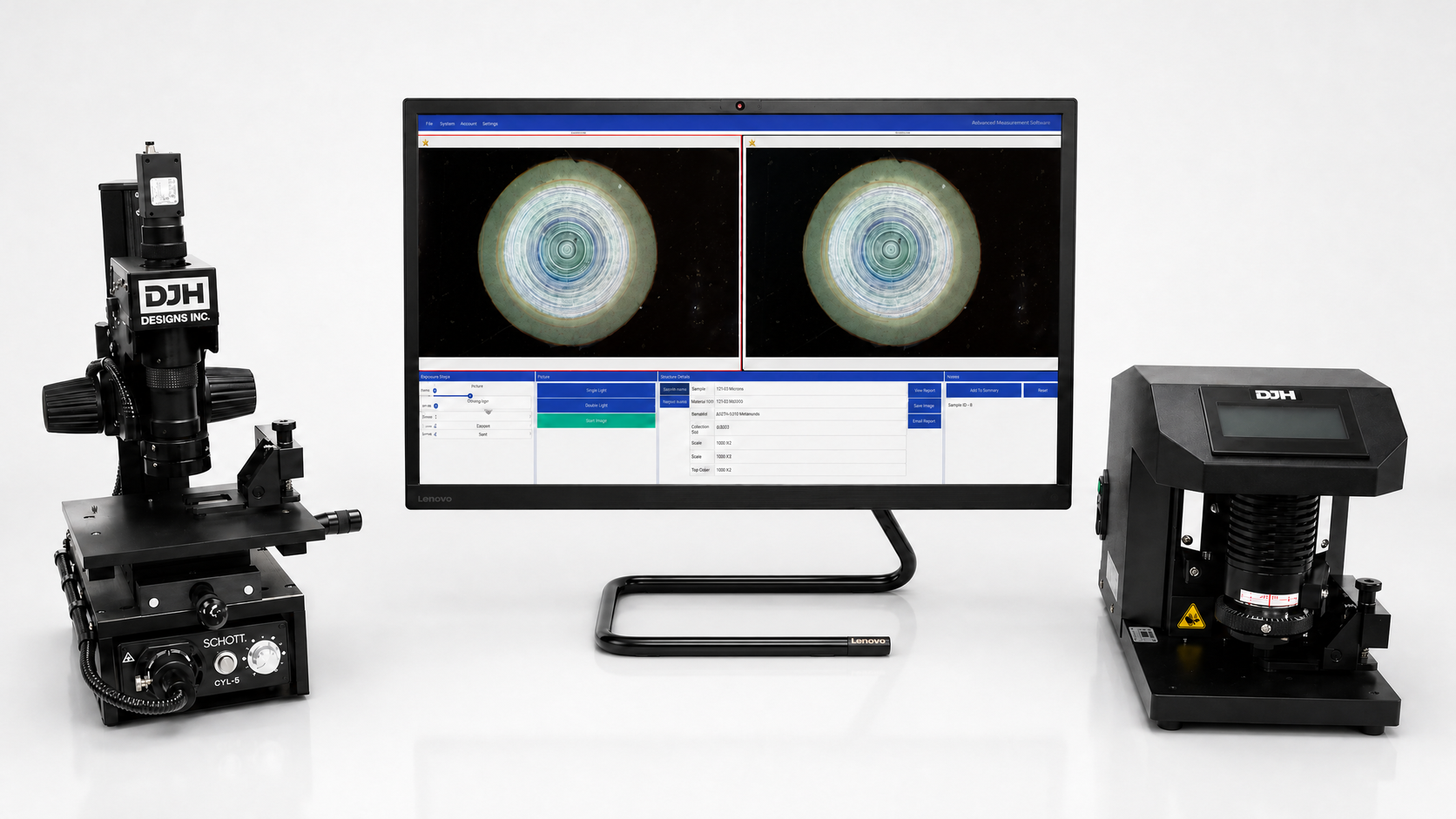

Developed for both production lines and QC laboratories, this system uses advanced computer-programmed motion control for repeatable, highly accurate measurements. Eliminates operator error with consistent results machine to machine, site to site. Reads primer and topcoat film simultaneously. Measures up to 12 Mil (300 µm) using optional bit. No calibration required for different substrate materials. DJH View Software with multi-point averaging ensures consistent results.
DJH Designs · Solvent Resistance

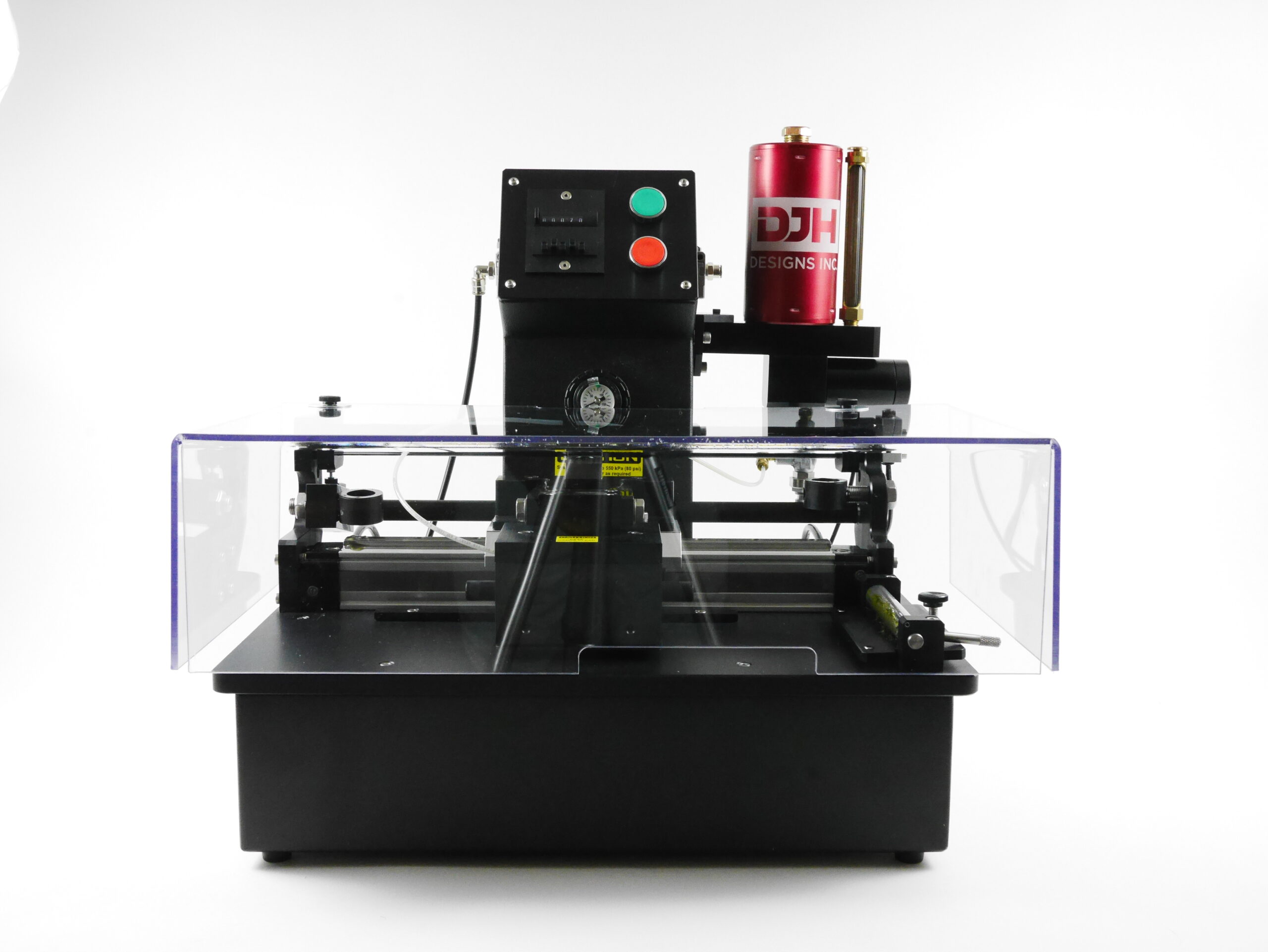

MEK Rub
Test Machine

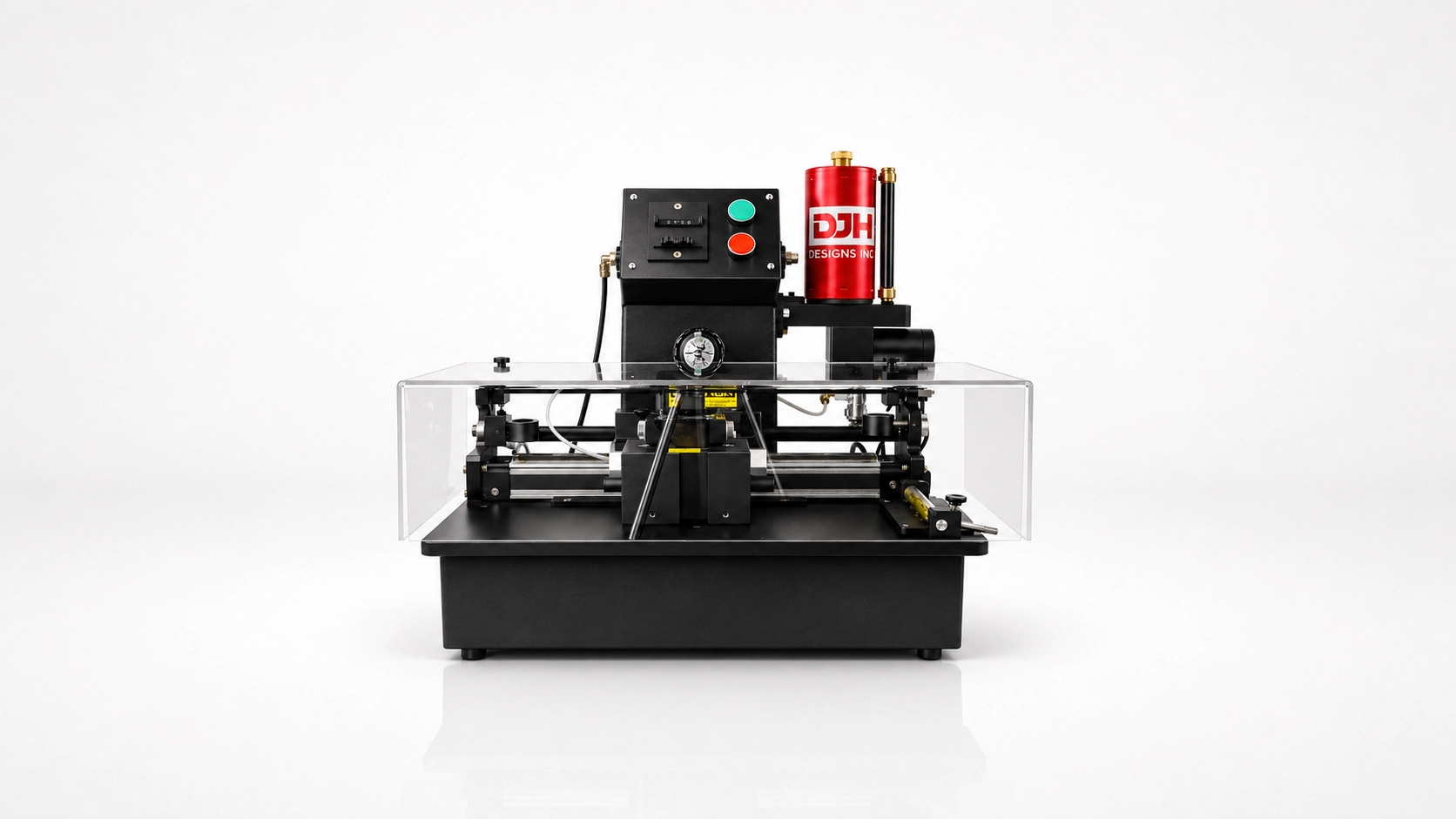

Semi-automated machine developed to eliminate inconsistent rub test results between operators. Programmable stroke counter (1–99,999 strokes), constant-pressure dead weight rubbing block, and quick-change solvent pad system ensure repeatable results from lab to production line. Fully pneumatic — no electrics — with CE certification. Minimises operator contact and exposure to solvents. 70 double rubs/min at 550 kPa operational pressure.
DJH Designs · Volume Solids

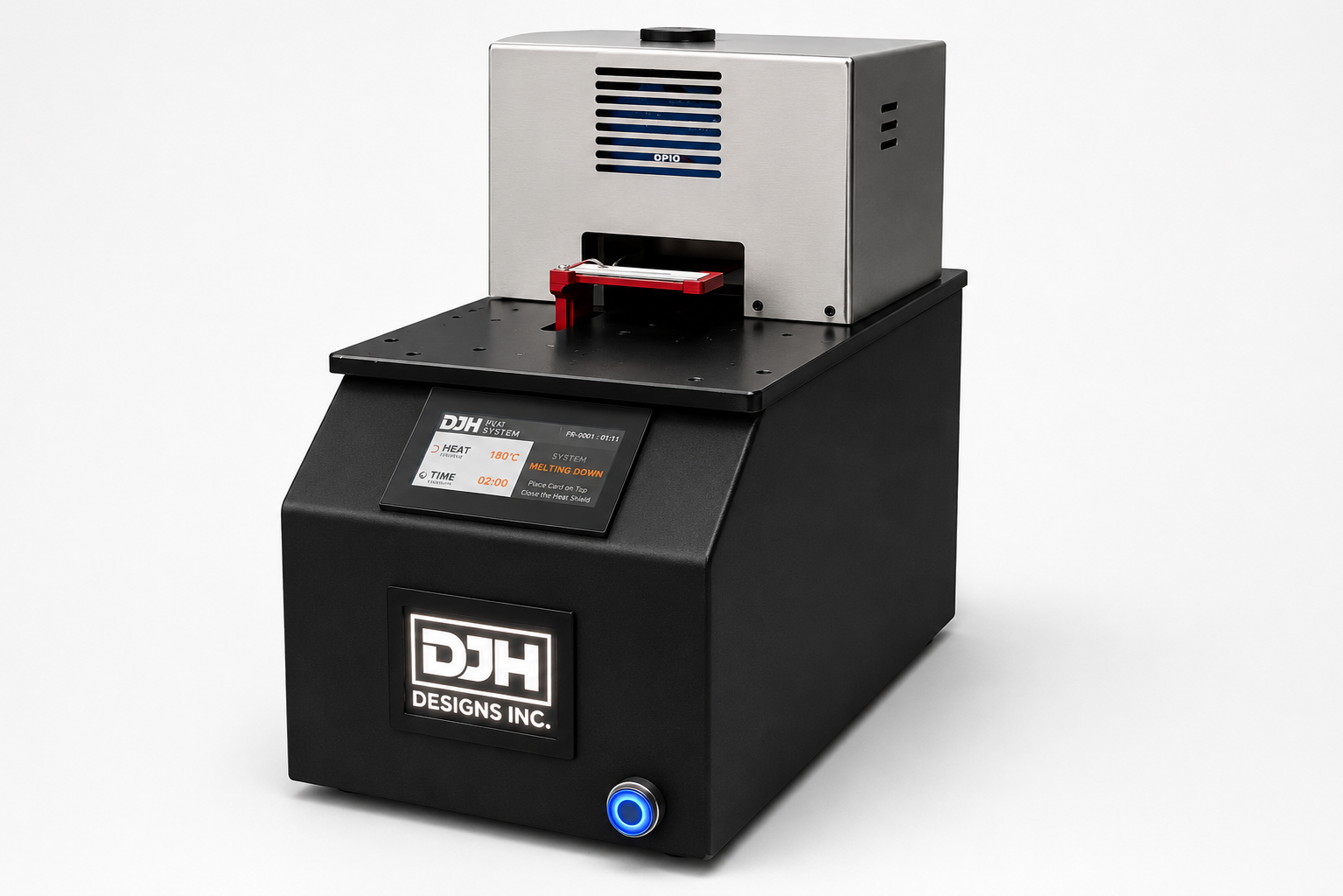

PVS1™ Paint Volume
Solids Instrument

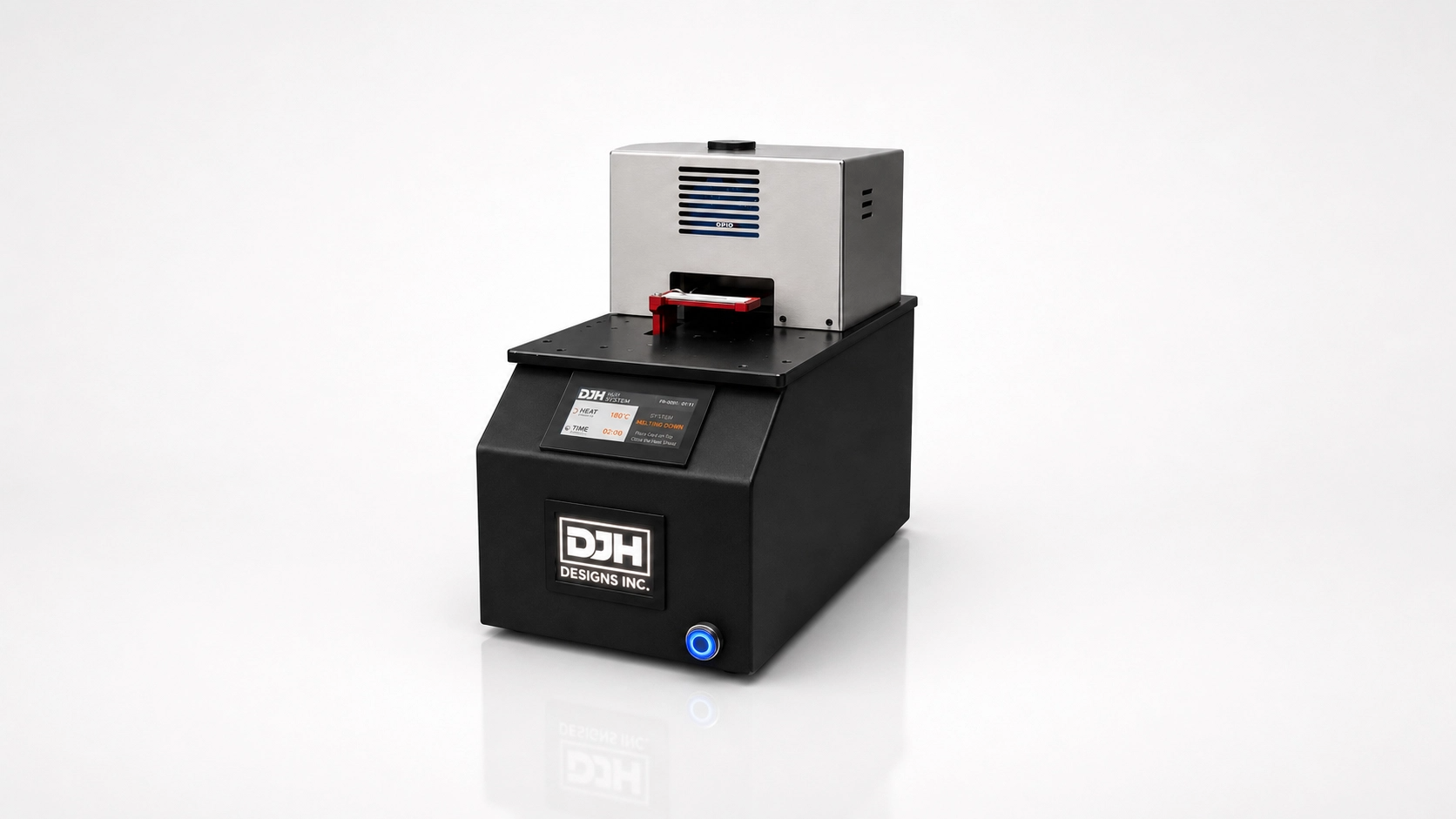

The only instrument in the world performing a true Volume Solids Test — ASTM and ISO methods are not true volume solids tests. Measures paint volume solid content using non-contact laser sensors to ±0.5% accuracy. Works with WFM1™ to predict dry film thickness before painting begins. Four-minute analysis cycle. Reduces off-colour defects by up to 50%. Historical database of all PVS results included. Weight: 15 kg.
DJH Designs · Adhesion Testing

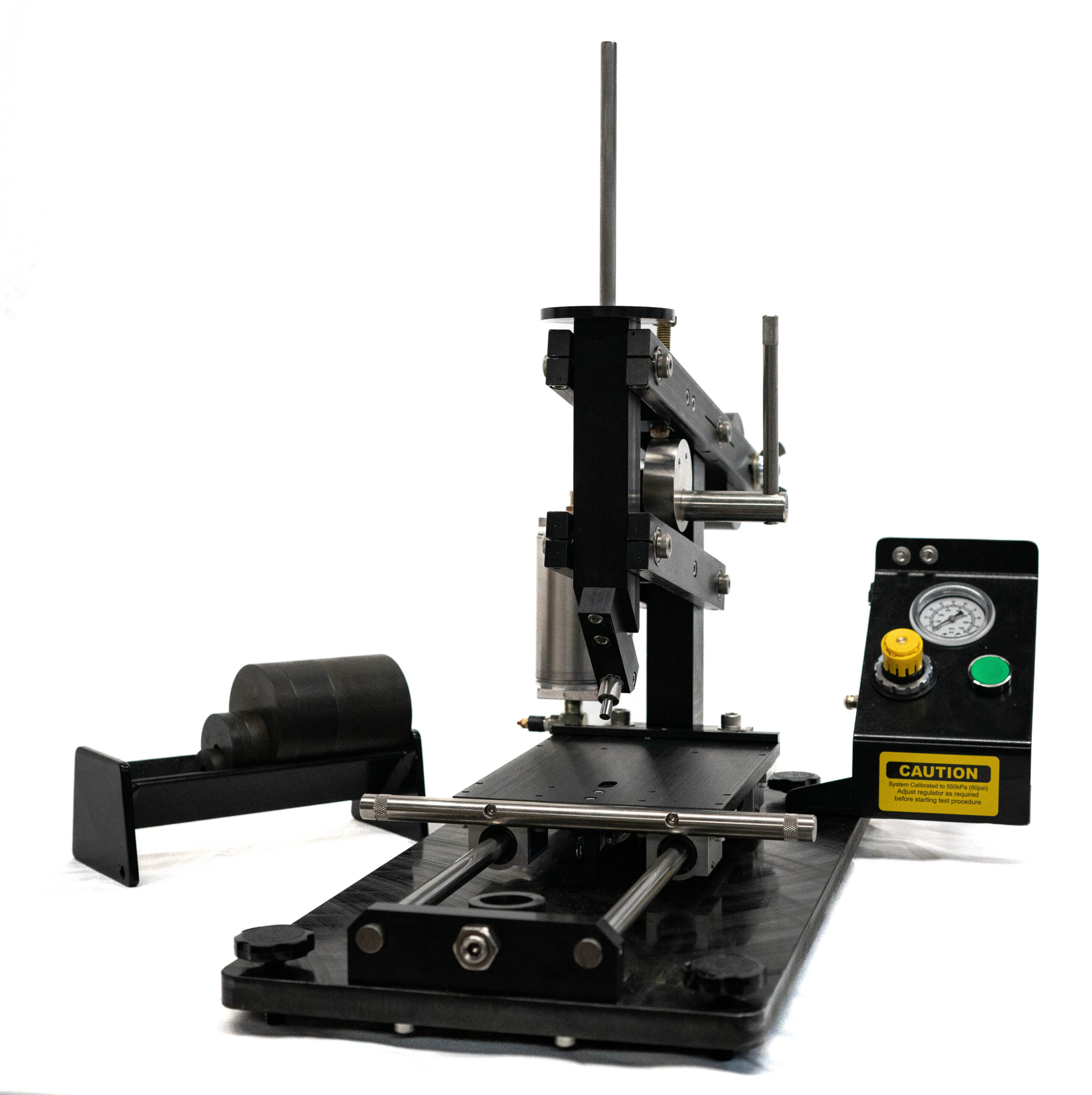

Scrape & Intercoat
Adhesion Tester

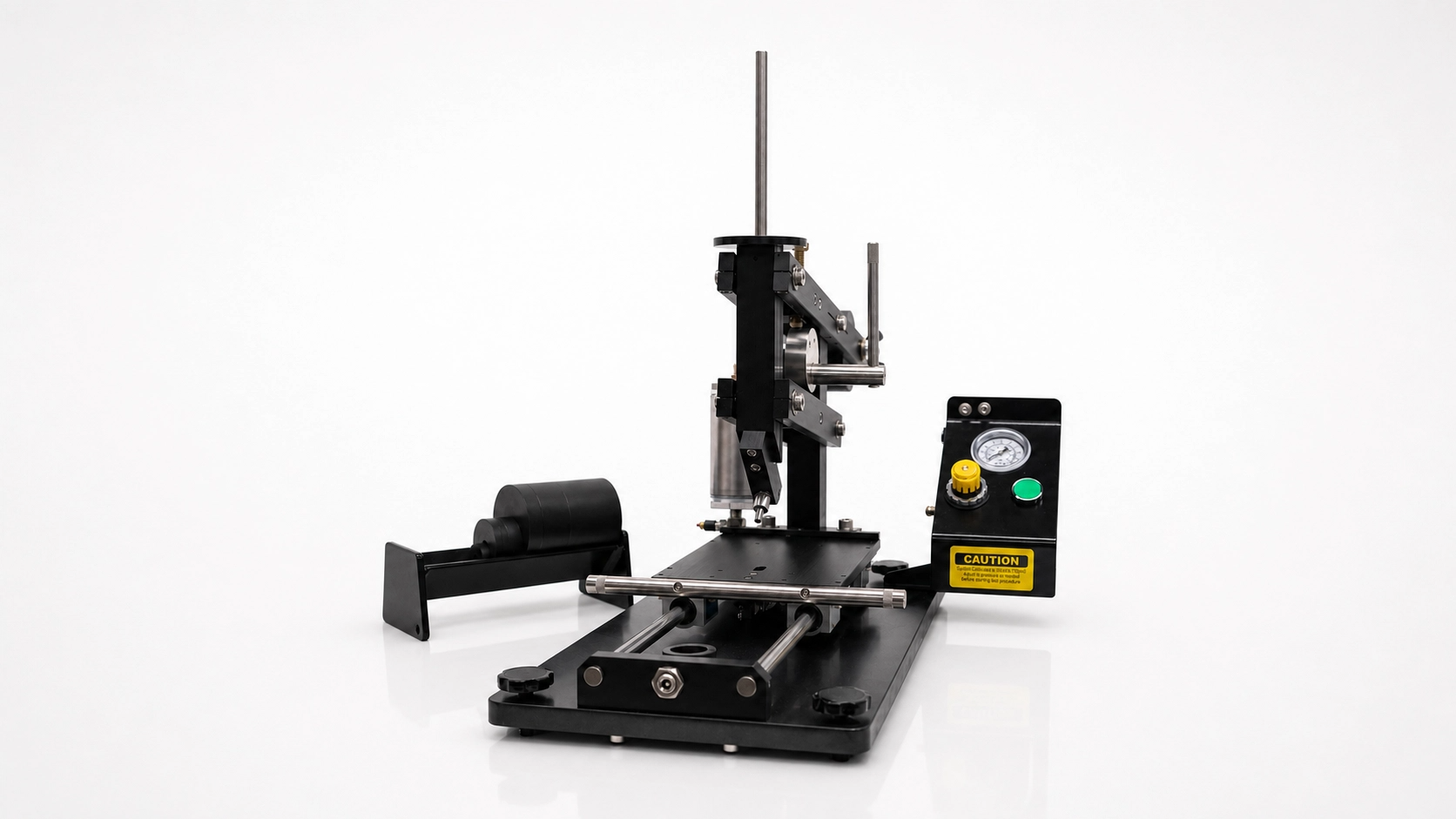

Standardises and quantifies intercoat adhesion beyond traditional coin tests by measuring shear bond strength between coating layers — a failure mode undetected by standard flexibility or adhesion checks. Usable as an online production tester or as a paint/substrate/process development tool. Travel speed: 50 mm/sec. Test panel: approx. 203 × 152 mm. Dimensions: 820 × 440 × 670 mm. Weight: 45 kg.
Objectra -·Coating Drill
Coating
Drill

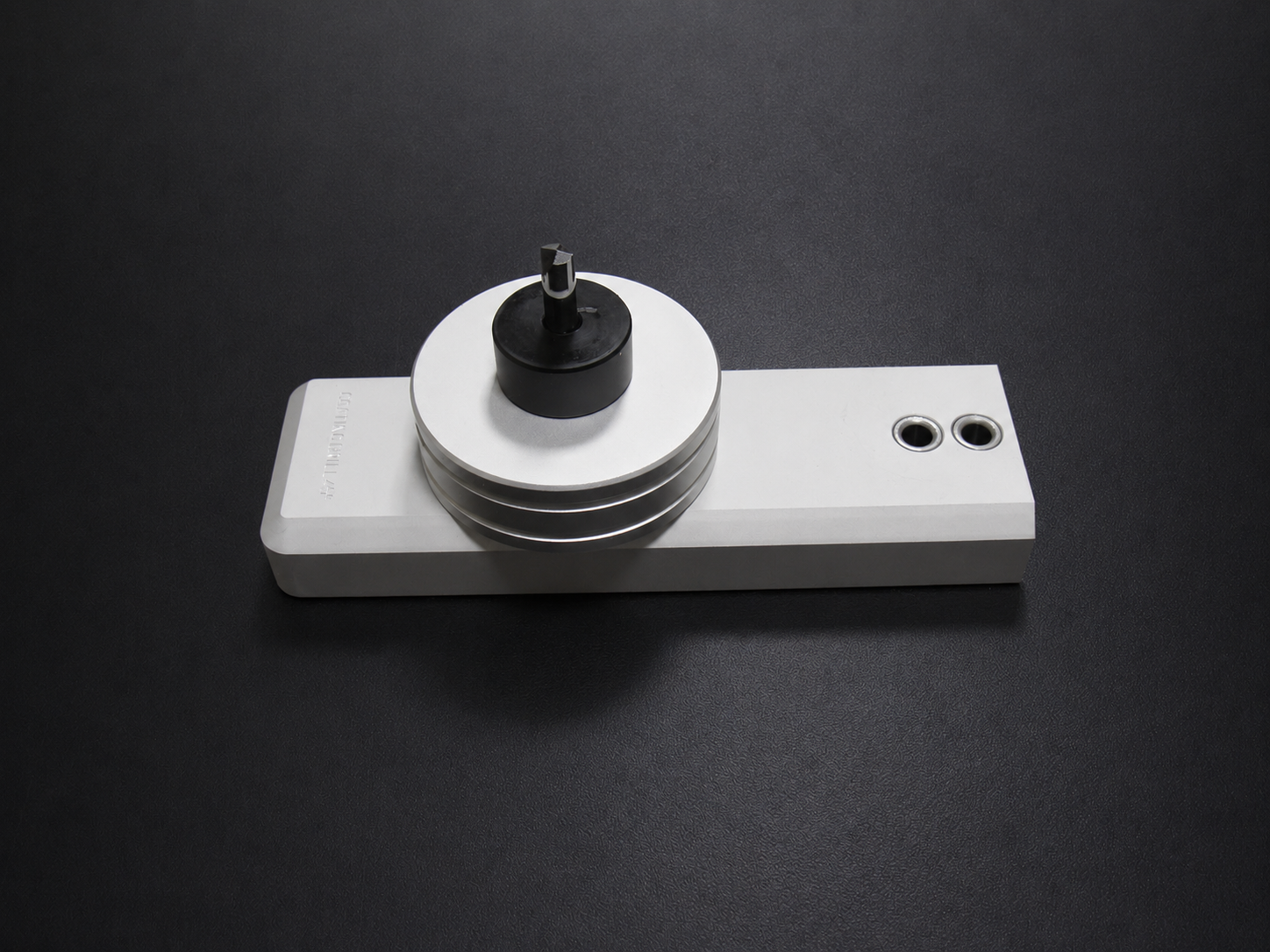

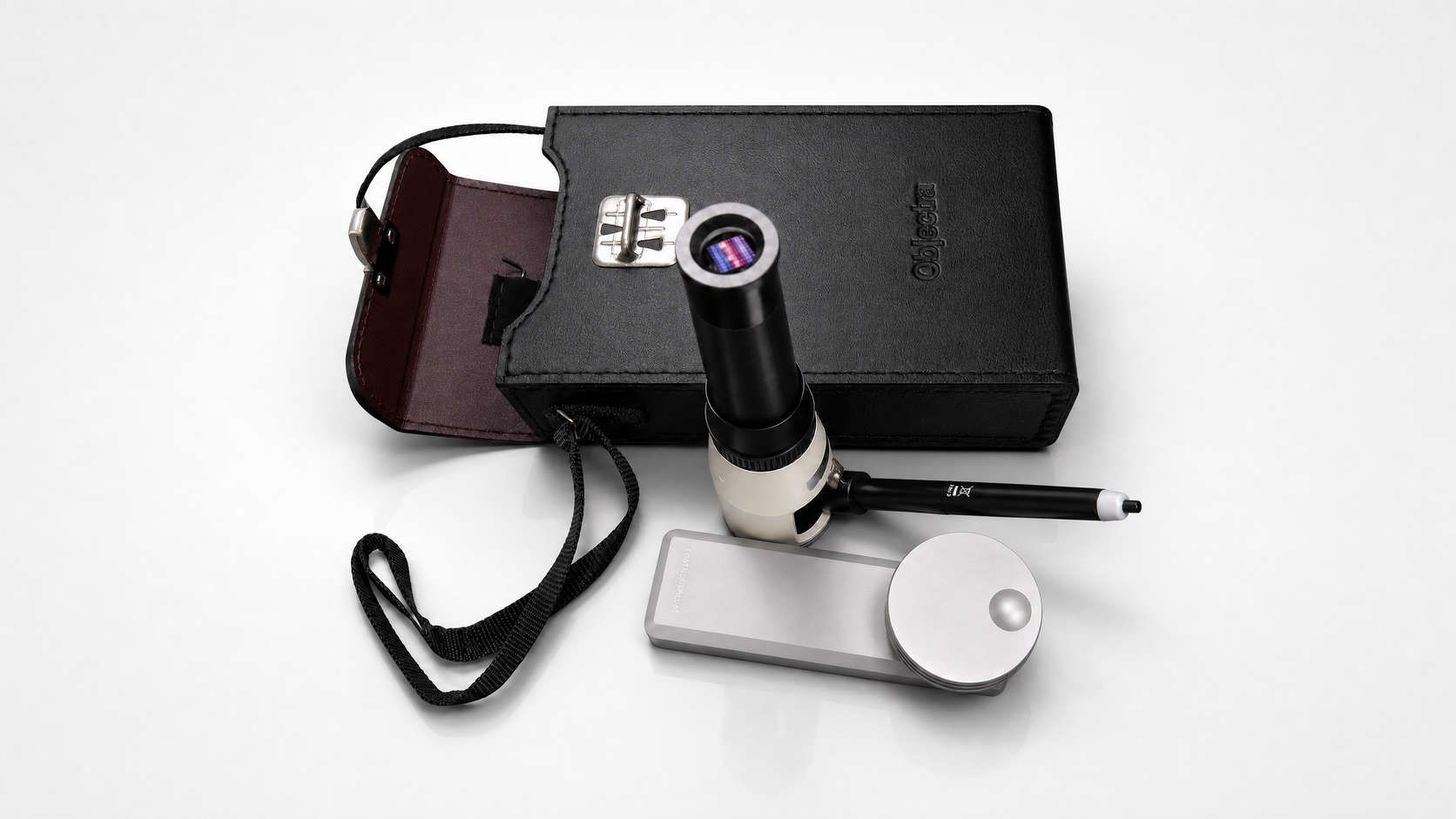

The Säberg Coating Drill is a patented instrument for accurate determination of individual coating layers: primer, intermediate coat and top coat — measured on site or in the laboratory, on substrates including steel, galvanized steel, wood, concrete and plastic. A small hole is drilled and a measuring microscope is used to read each layer individually.
DJH Designs · Inline Dry Film

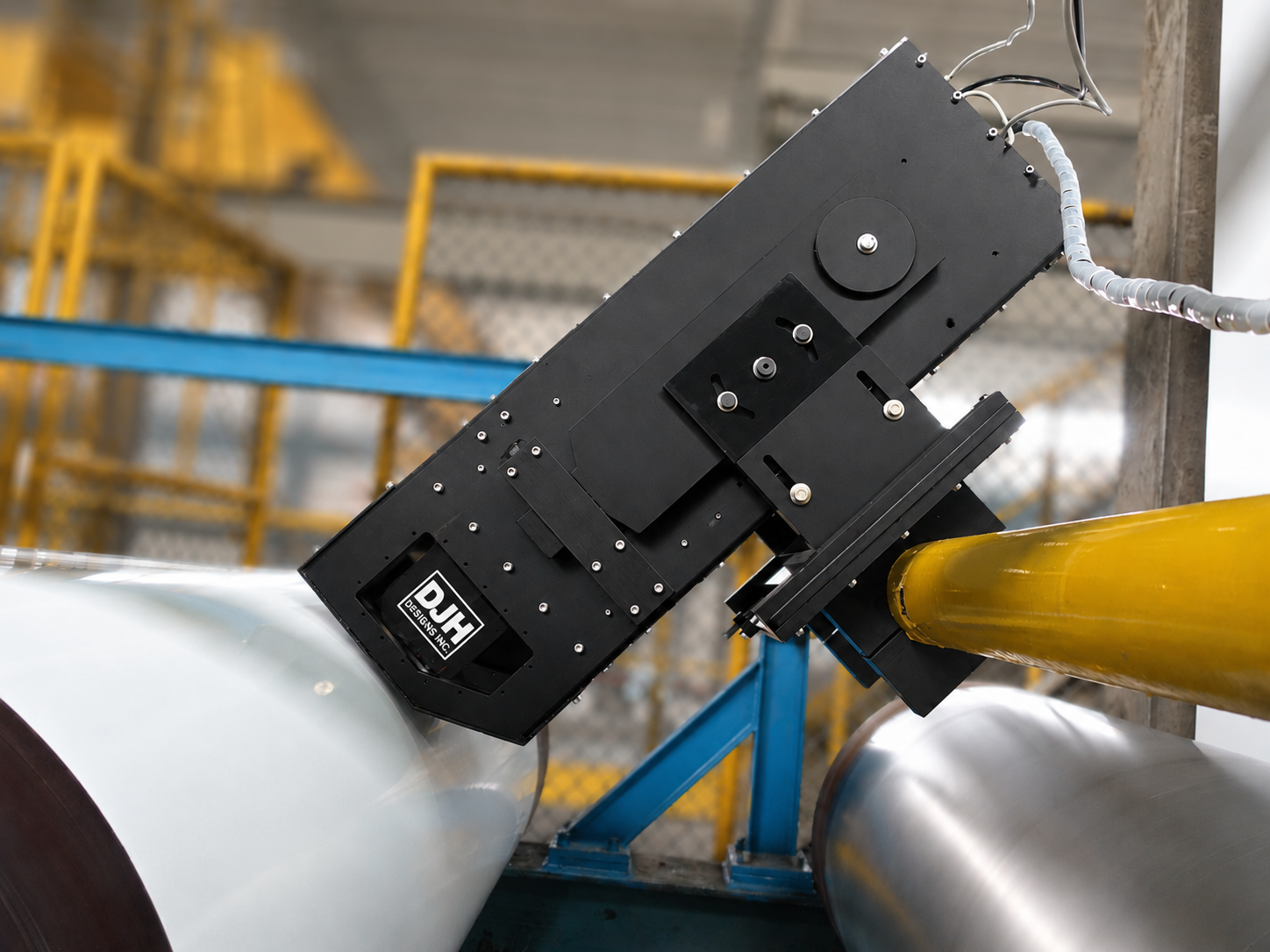

DFM-Alpha™
with Closed Loop Control

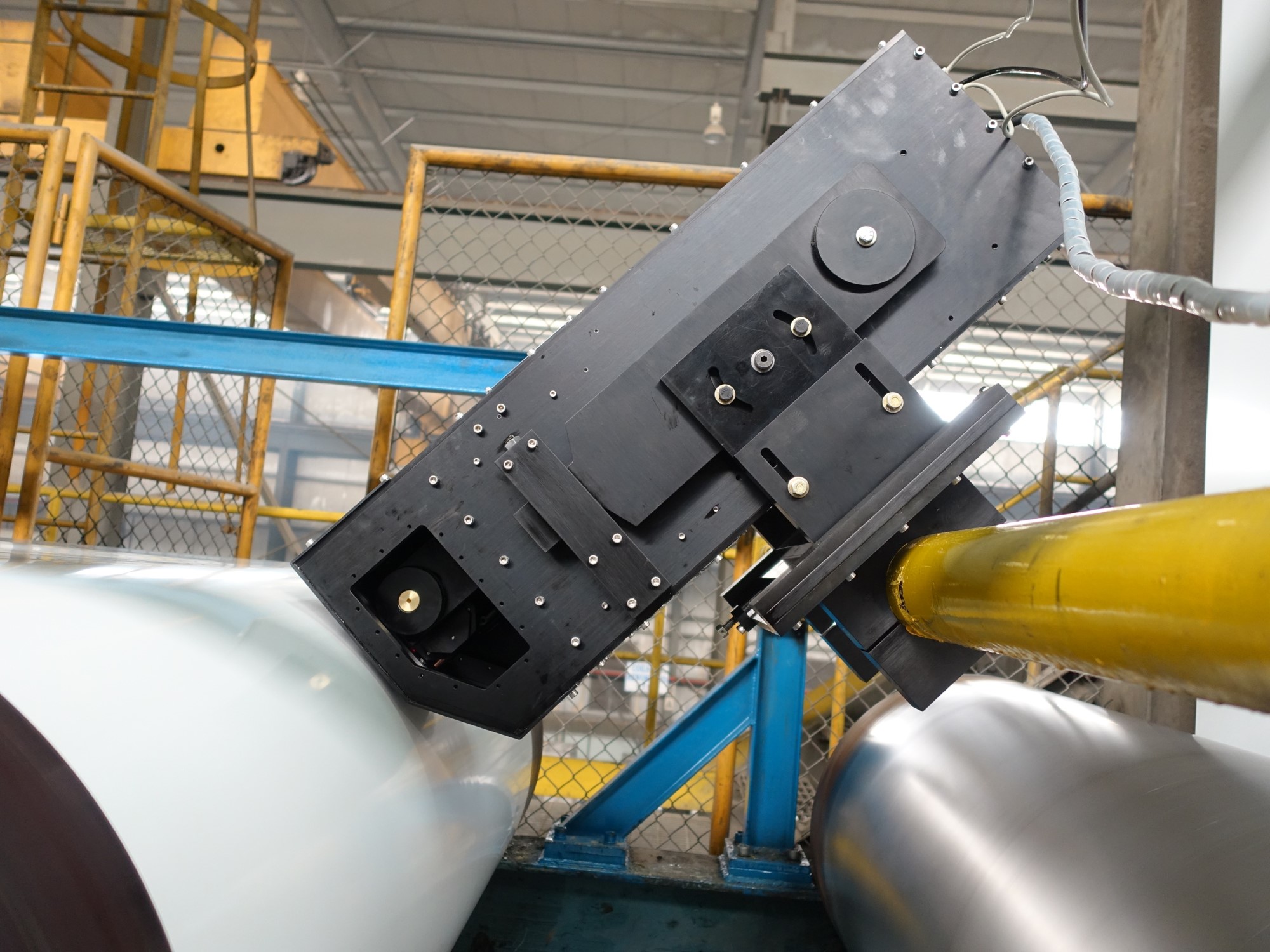

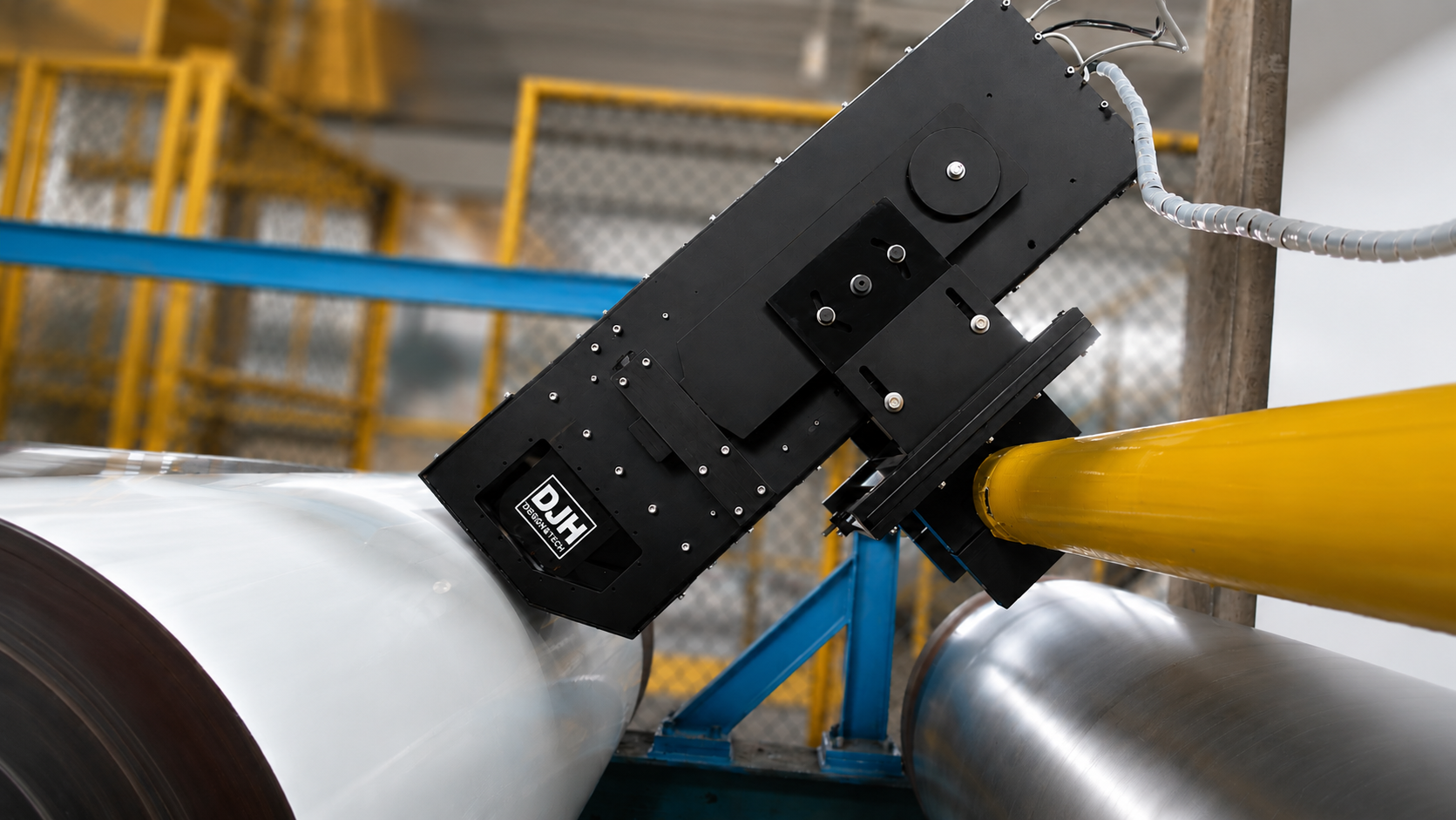

The world’s first online paint thickness instrument with integrated Closed-Loop Control (CLC™) — automatically adjusts the roll coater at the first sign of drift, 24/7, without operator involvement. Uses patented Direct Measurement Technology (DMT™): a laser ablates a 170 µm-wide point; no calibration required regardless of paint type, colour, or substrate. Measures 3–100+ µm to ±0.2 µm accuracy. Active edge detection, Z height control, and automatic coil splice retract. Designed for up to 20 years service life.
DJH Designs · Online Wet Film

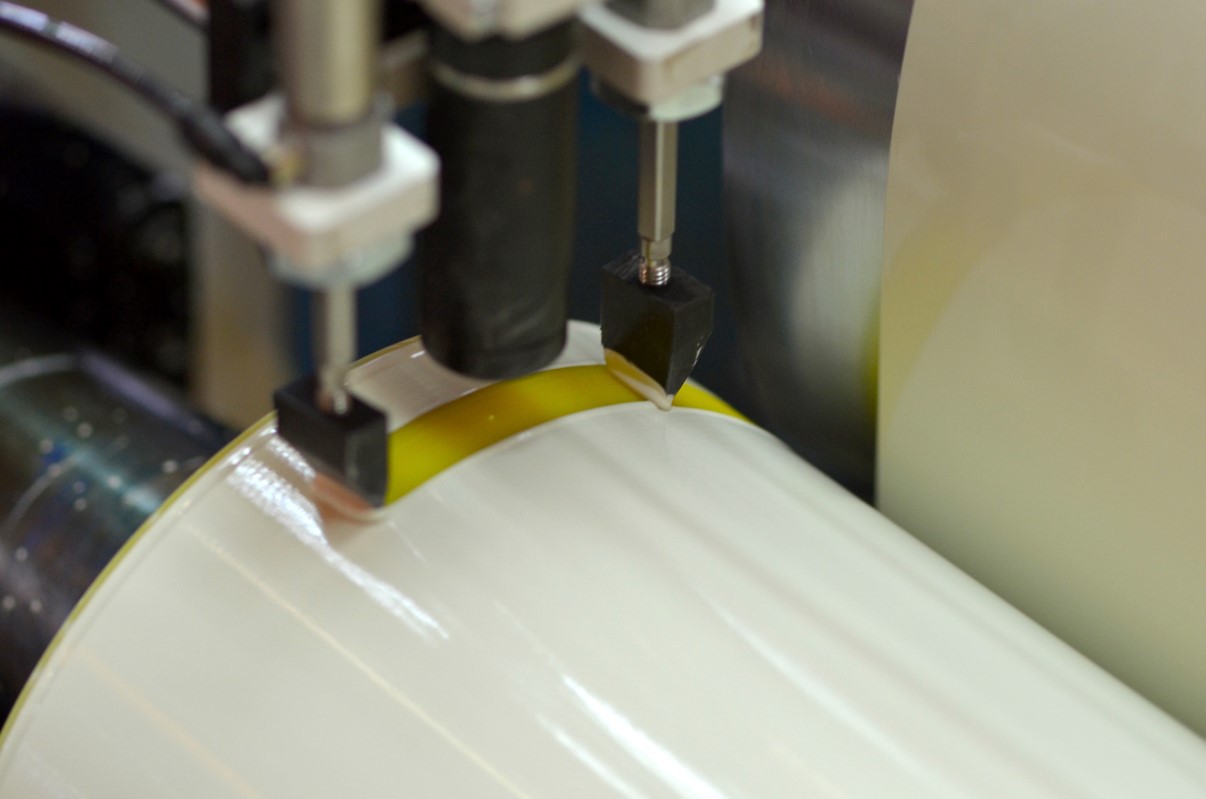

WFM1™ Online Wet Film
Thickness Measurement

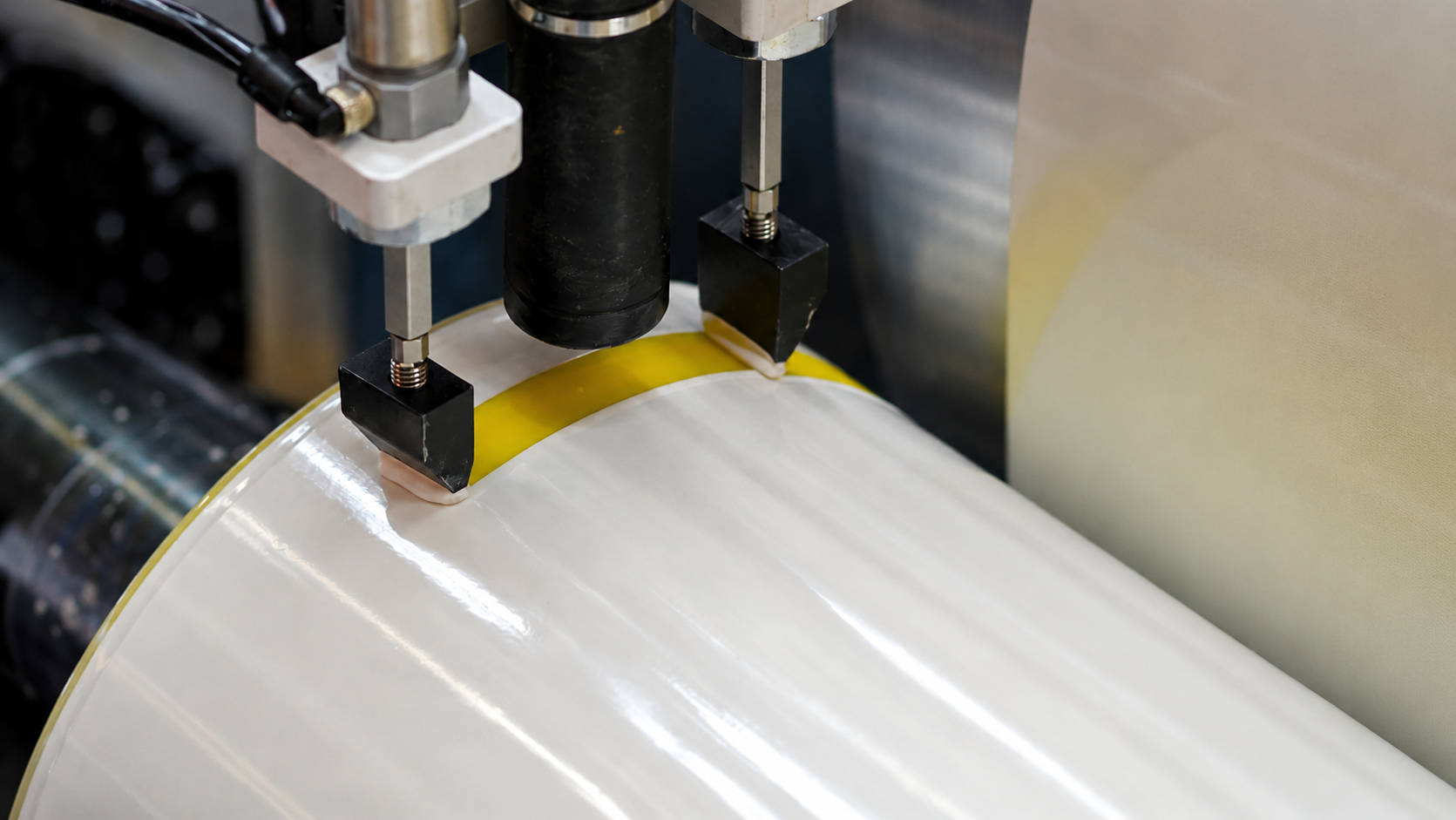

Measures wet film thickness (WFT) on the coater roll and predicts dry film thickness (DFT) on the strip before painting commences — eliminating out-of-specification product from the first metre of every coil. Uses a patented intrinsically safe confocal sensor with fully automated wipers; no calibration required. Checks film builds as low as 1 µm. Works in tandem with PVS1™ volume solids data for accurate DFT prediction. Film thickness range: 1.5 µm and up.ed for up to 20 years service life.
DJH Designs · Offline Film Profile

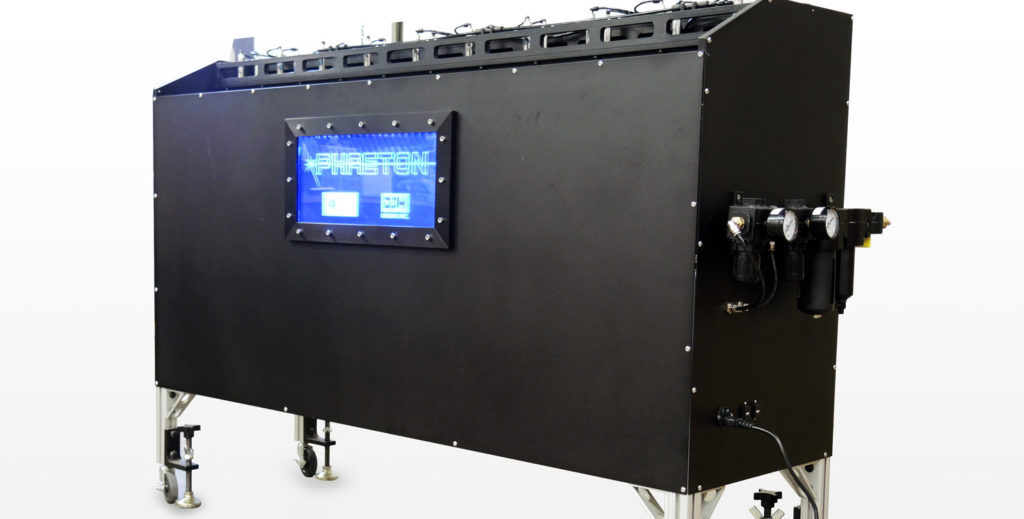

Phaeton™ Offline Film
Thickness Profile

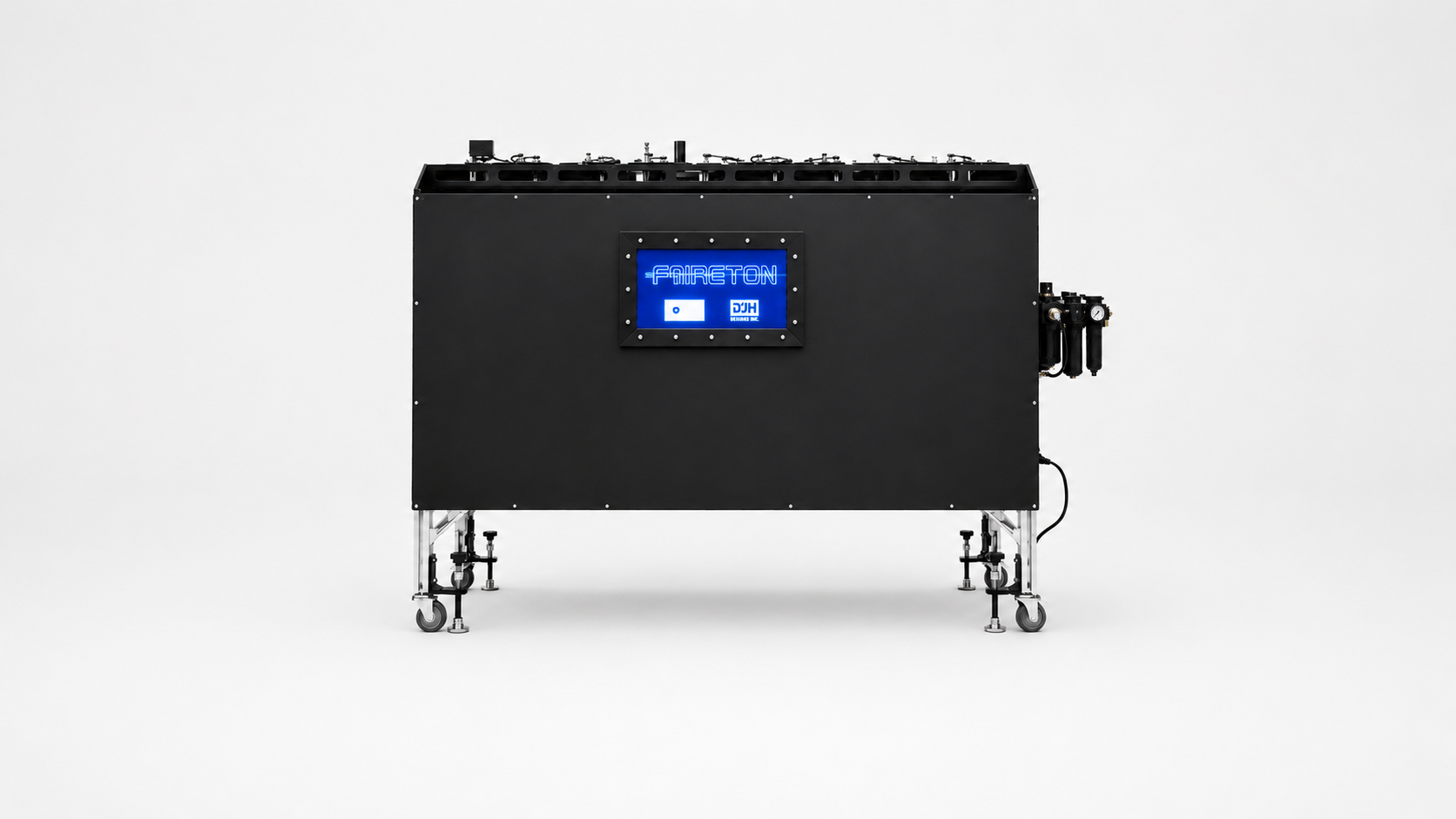

The fastest, most accurate lab-quality film thickness profile instrument available. Up to 1,000 measurements across a 1,000 mm sample in under 5 seconds — no calibration for any coating, color, or substrate type. Laser ablation with high-precision displacement sensor: 49,000 measurements/sec at 0.03 µm resolution. Instantly reveals coater faults: unbalanced coater, out-of-shape rolls, localised ridges. Measures 3.5–220 µm to ±0.2 µm. Optional Color Scan adds full-width color profiling.
DJH Designs · Strip Joining

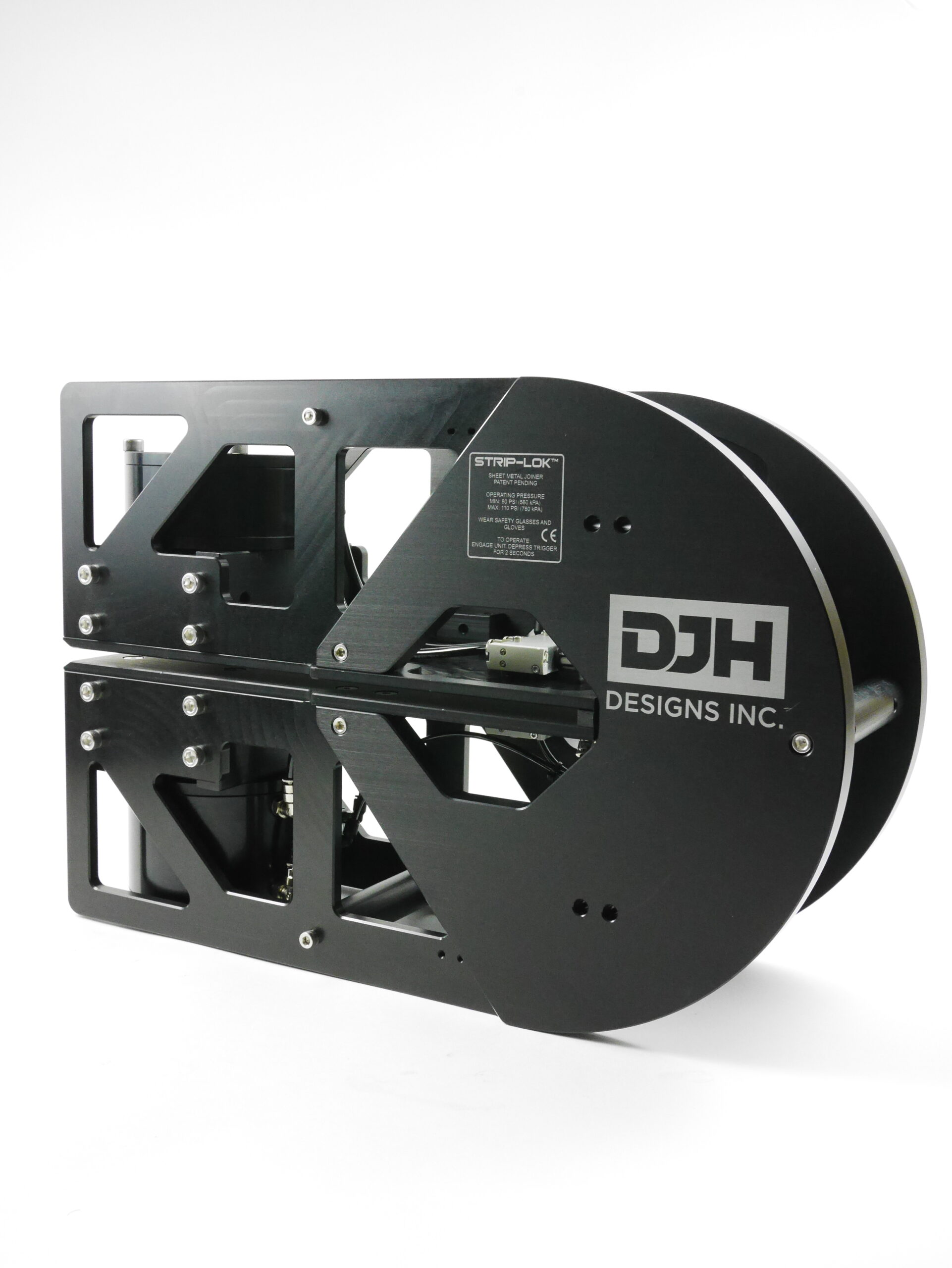

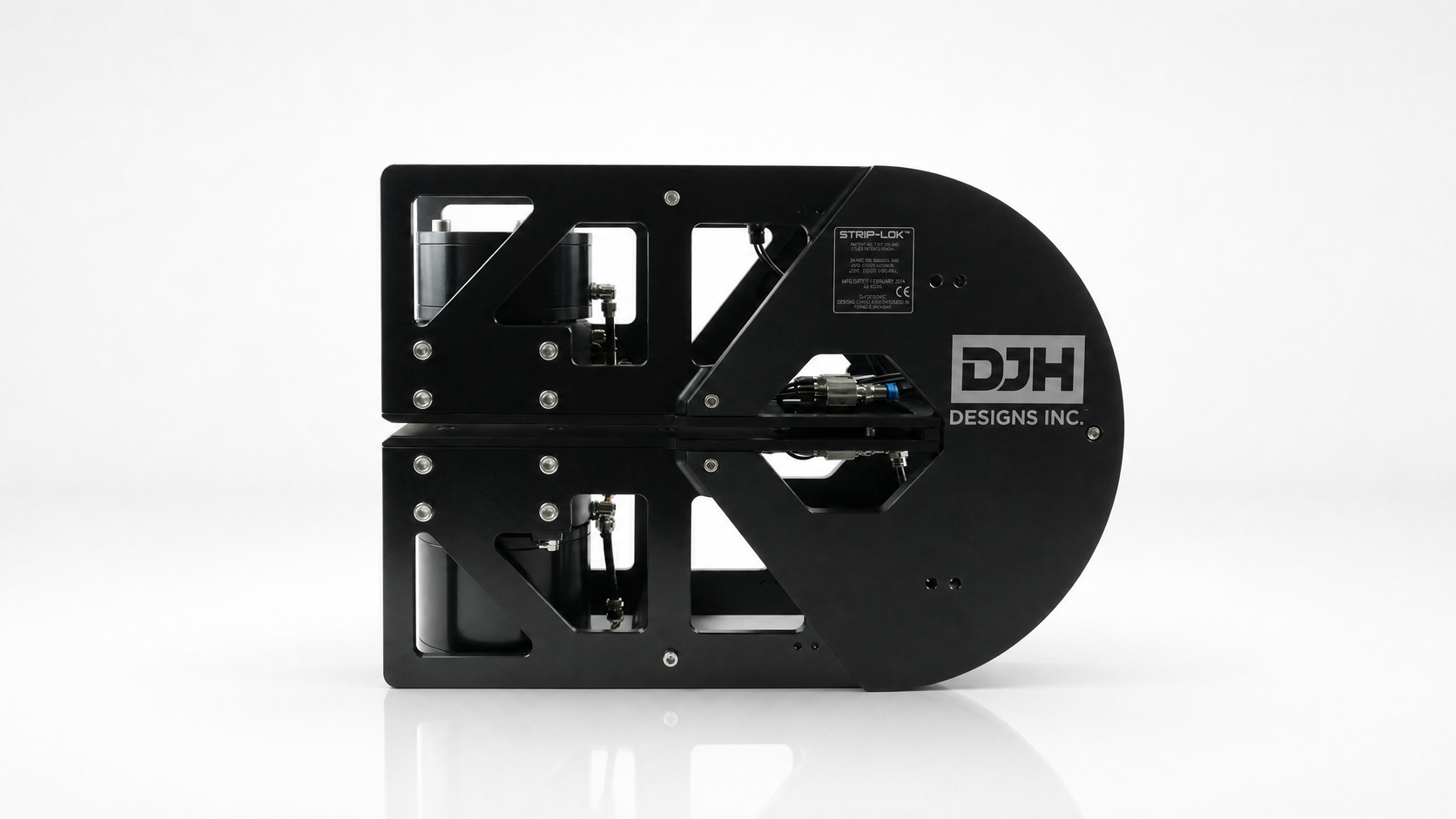

Strip-Lok™
Sheet Metal Joiner
Powerful 64-bit imaging and measurement platform for DJH film thickness instruments. Version 10 introduces fully automated layer detection with up to 360 data points per layer — eliminating manual operator interpretation. Includes point-to-point, parallel line, 4-point and 8-point averaging, radial, and angle measurement tools. ODBC-compliant archival database with image capture, annotation, reporting, and email export. Supports aluminium, galvanized, and glass substrates.
